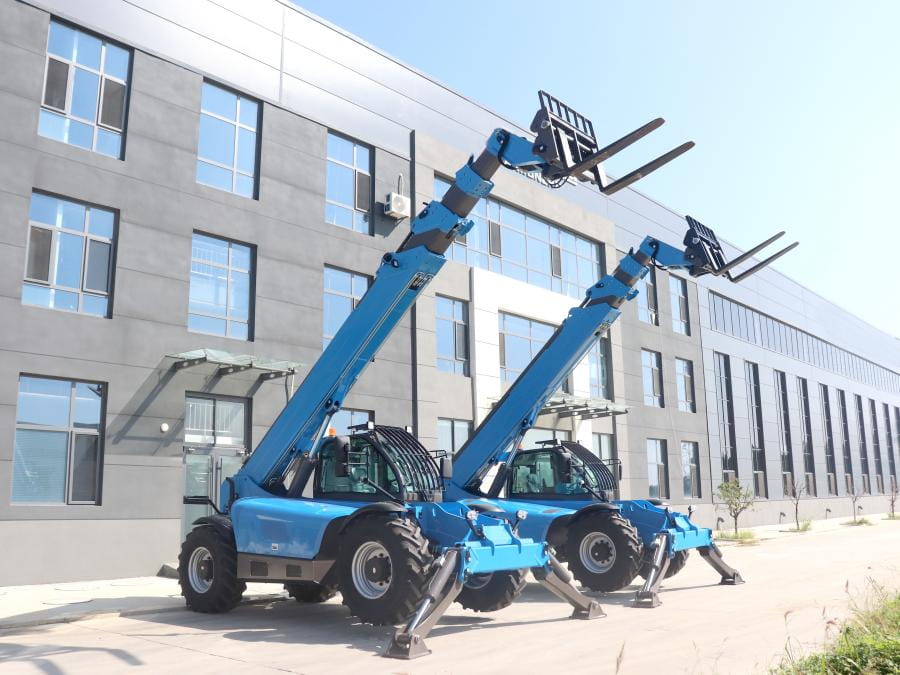

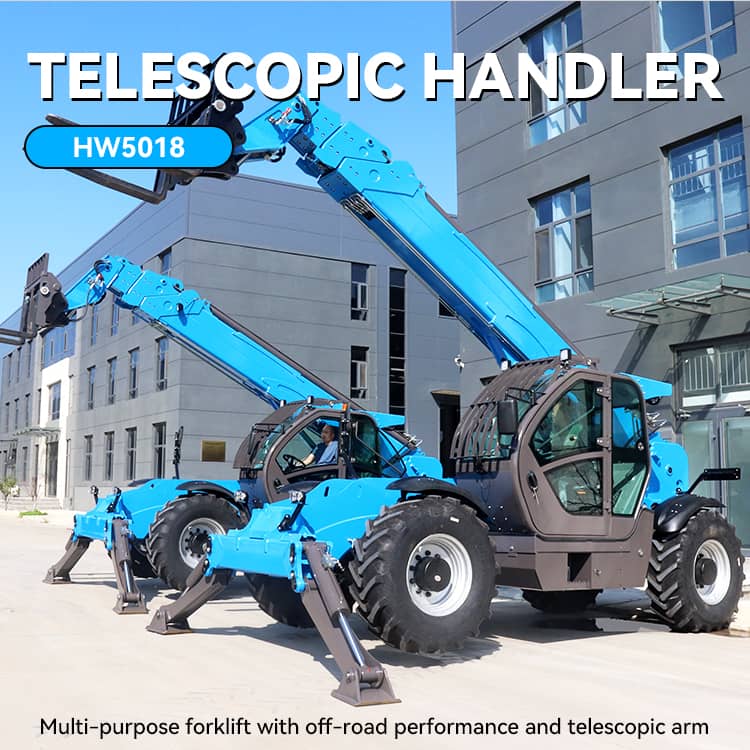

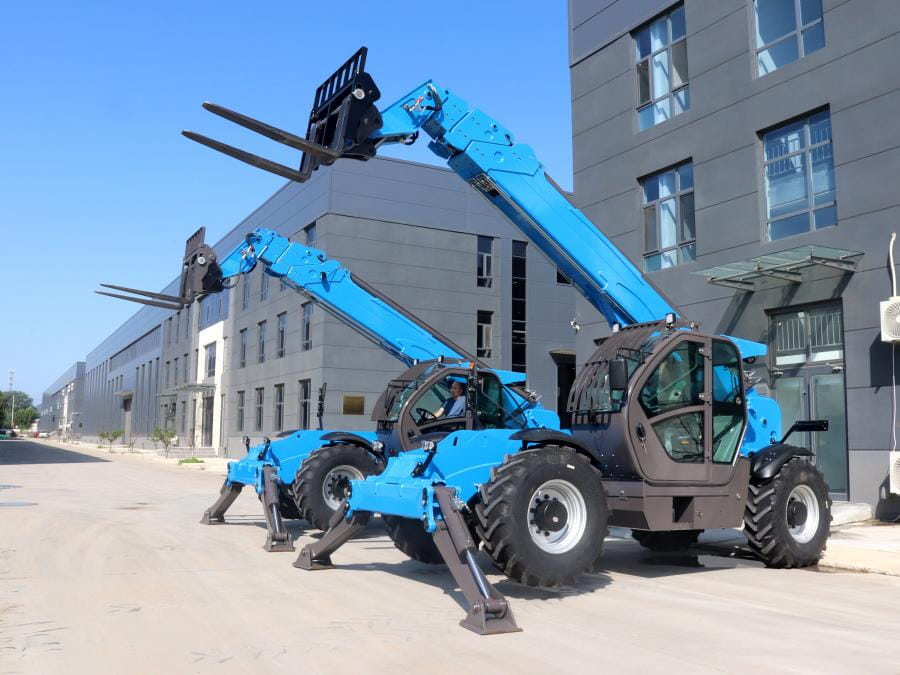

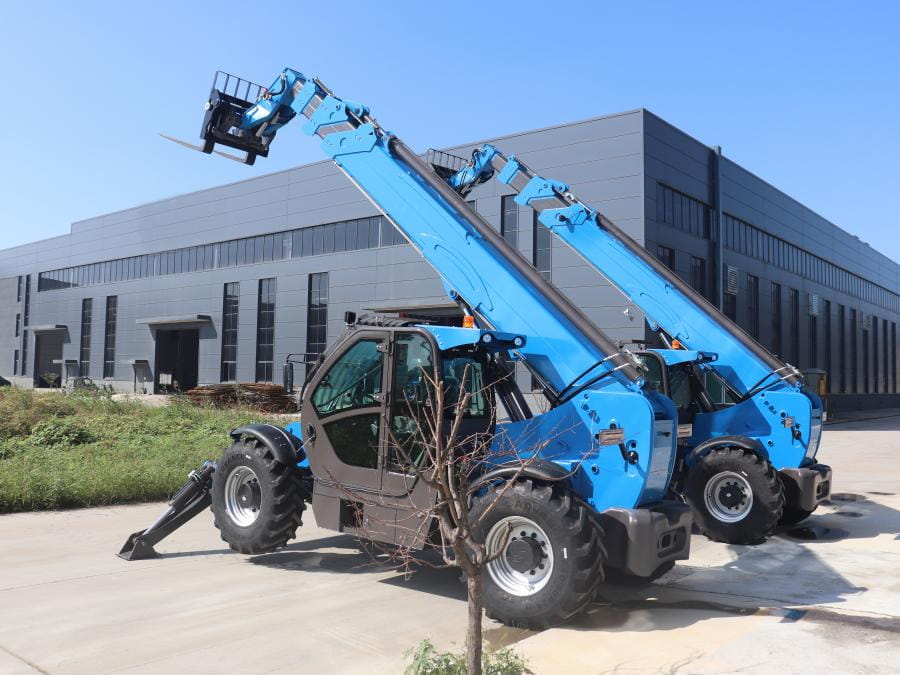

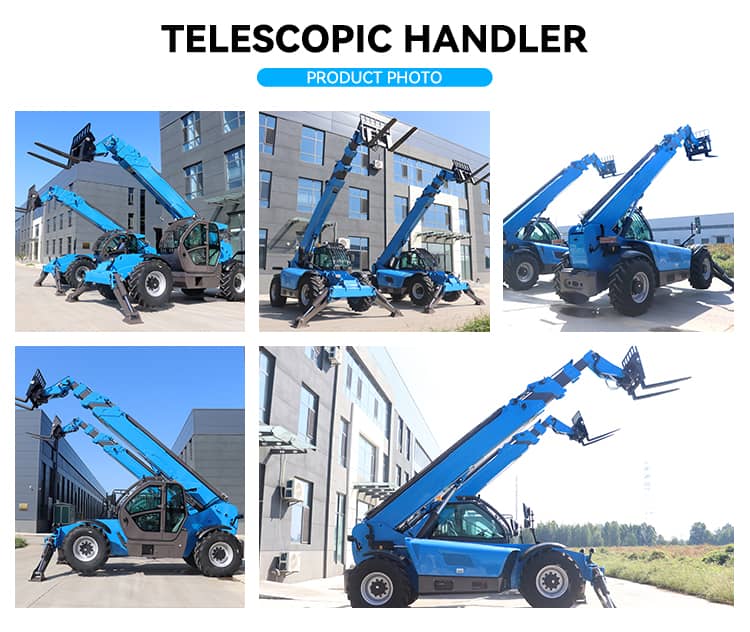

| Feature | Model HW5018-A | Model HW5018-B |
| Engine | Yuchai (Optional: Weichai / Cummins) | Yuchai |
| Power Output | 96 kW | 91 kW |
| Emission Standard | China Stage III / Stage IV | National II (China) |
| Operating Weight | 13.2 Tons | 14,200 kg (14.2 Tons) |
| Rated Load Capacity | 5.0 Tons | 5.0 Tons |
| Max. Lifting Height | 17.45 m | 17.6 m |
| Overall Dimensions (LWH) | 7,850 x 2,500 x 2,700 mm (Inc. Forks) | 7,000 x 2,350 x 2,550 mm |
| Transmission | Static Shifting (Opt: Power Shift) | Hydraulic Torque Converter |
| Drive Mode | Manual / Shifting while driving | Full Electronic Control |
| Gears | Standard Configuration | F4 / R4 (4 Forward / 4 Reverse) |
| Axles | Wet Braking Axles | Air Brake Axles (Dry Type) |
| Hydraulic System | Rexroth / Nuoman | Electro-hydraulic Load-sensing |
| Telescopic Boom | Hexagonal integrated bending design | 4-Section Boom |
| Boom Material | High-strength Structural Steel | BS1000 High-strength Manganese Steel |

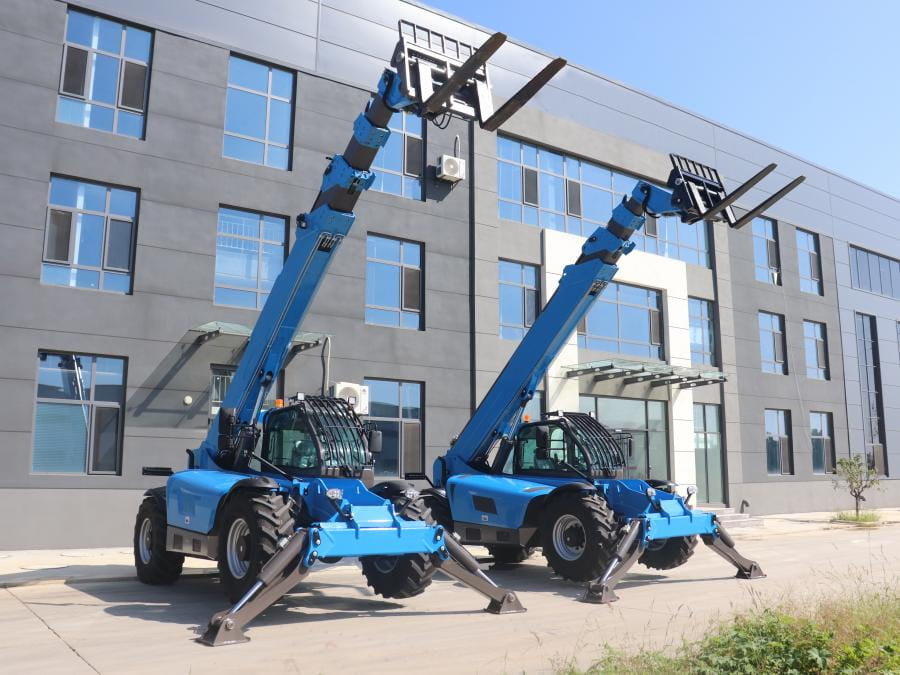

| Frame Leveling | Supported (±8°) | Supported (Frame Tilt) |
| Tire Model | 17.5-25 | 440/80R24 Tubeless (Advance Brand) |
| Max. Travel Speed | 32 km/h | 40 km/h |
| Fuel Tank Capacity | 140 L | 195 L |
| Hydraulic Oil Capacity | 135 L | 170 L |
| Cabin | Luxury Cabin (10-inch Display) | Luxury Cabin |

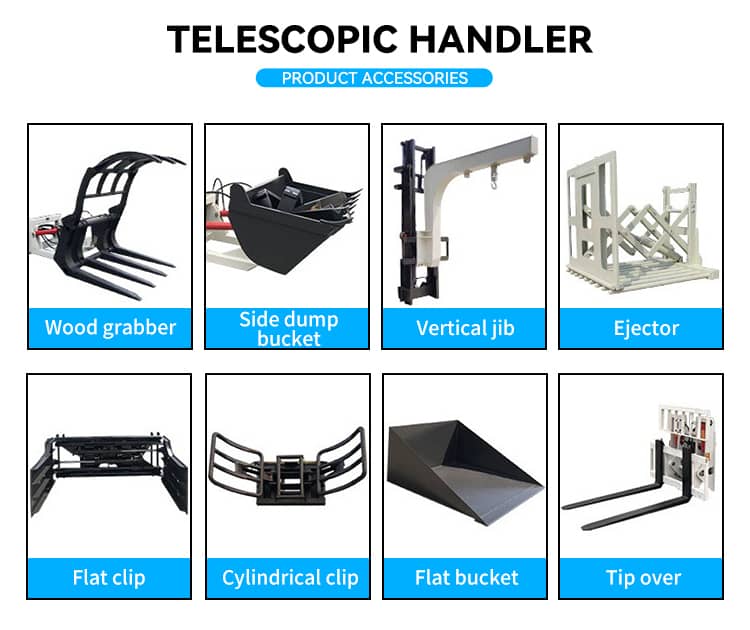

| Quick Hitch | Optional | Hydraulic Quick Coupler (Included) |
| Additional Features | Optional 360° Camera System | Outriggers, Counterweight, 1.2m Forks |
