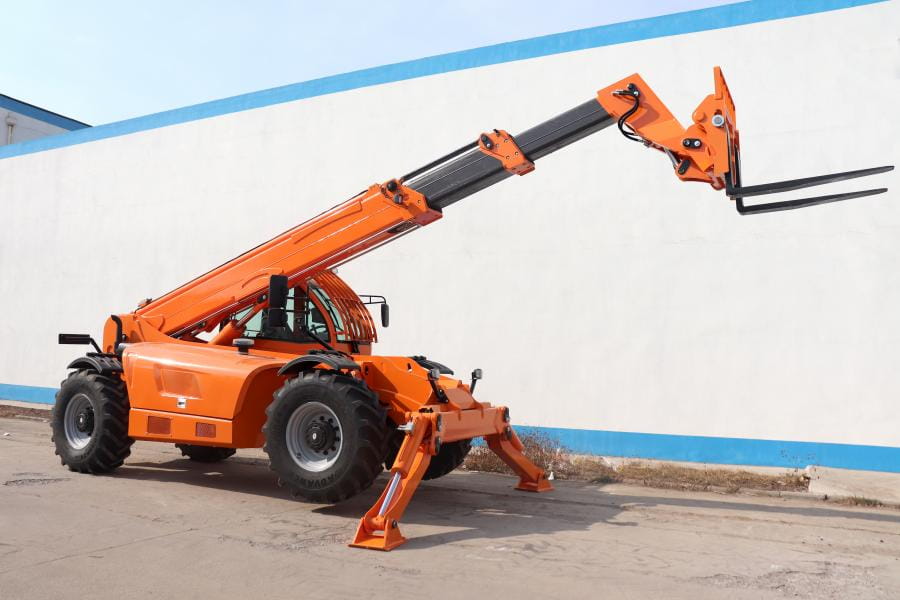

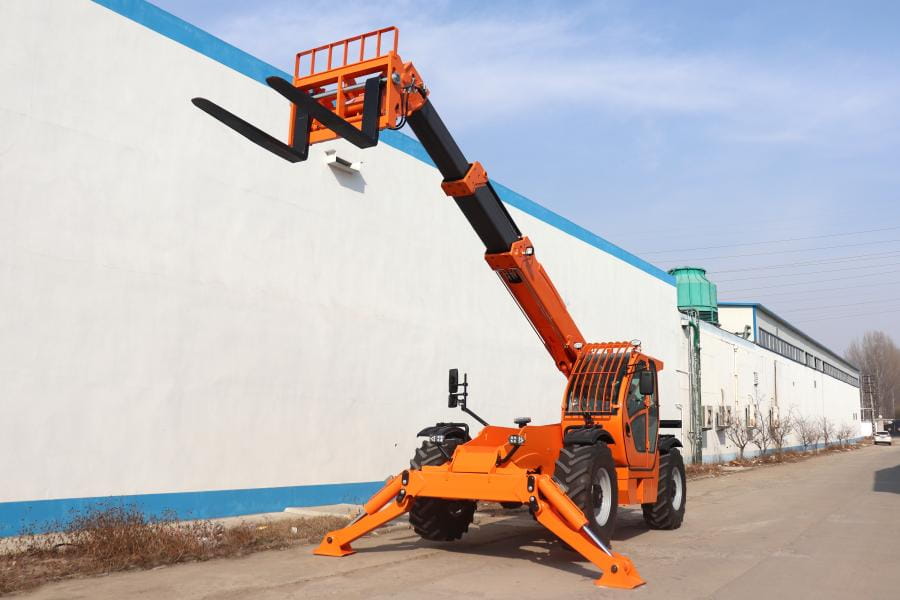

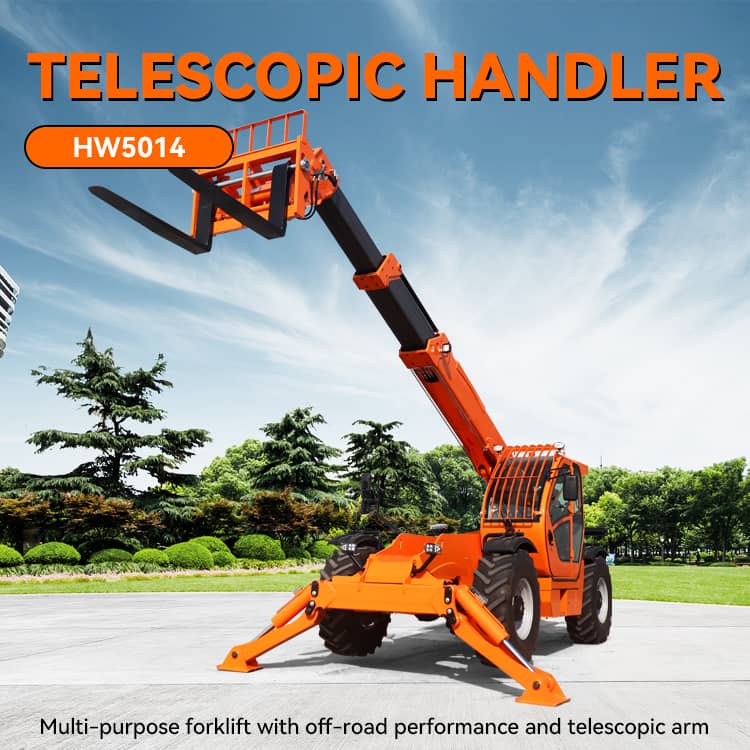

| Specification Item | HW5014-A (High-End) | HW5014-B (High-Efficiency) |
| Engine | Weichai (Opt: Yuchai/Cummins) | Yuchai |
| Power | 96 kW | 91 kW |
| Emission Standard | China Stage III / Stage IV | National II (China) |
| Rated Load Capacity | 5.0 Tons | 5.0 Tons |
| Operating Weight | 12.8 Tons (12,800 kg) | 13.6 Tons (13,600 kg) |
| Max. Lifting Height | 13.45 m | 14.0 m |
| Dimensions (L×W×H) | 7,750 x 2,500 x 2,700 mm (Incl. Forks) | 6,600 x 2,350 x 2,650 mm |
| Transmission System | Static Shifting (Opt: Power Shift) | Hydraulic Torque Converter |
| Drive Mode | Shifting while driving | Full Electronic Control |
| Gears | - | F4 / R4 (4 Forward / 4 Reverse) |
| Axles | Wet Braking Axles | Air Brake Axles (Dry Type) |
| Hydraulic System | Rexroth / Nuoman | Electro-hydraulic Load-sensing |

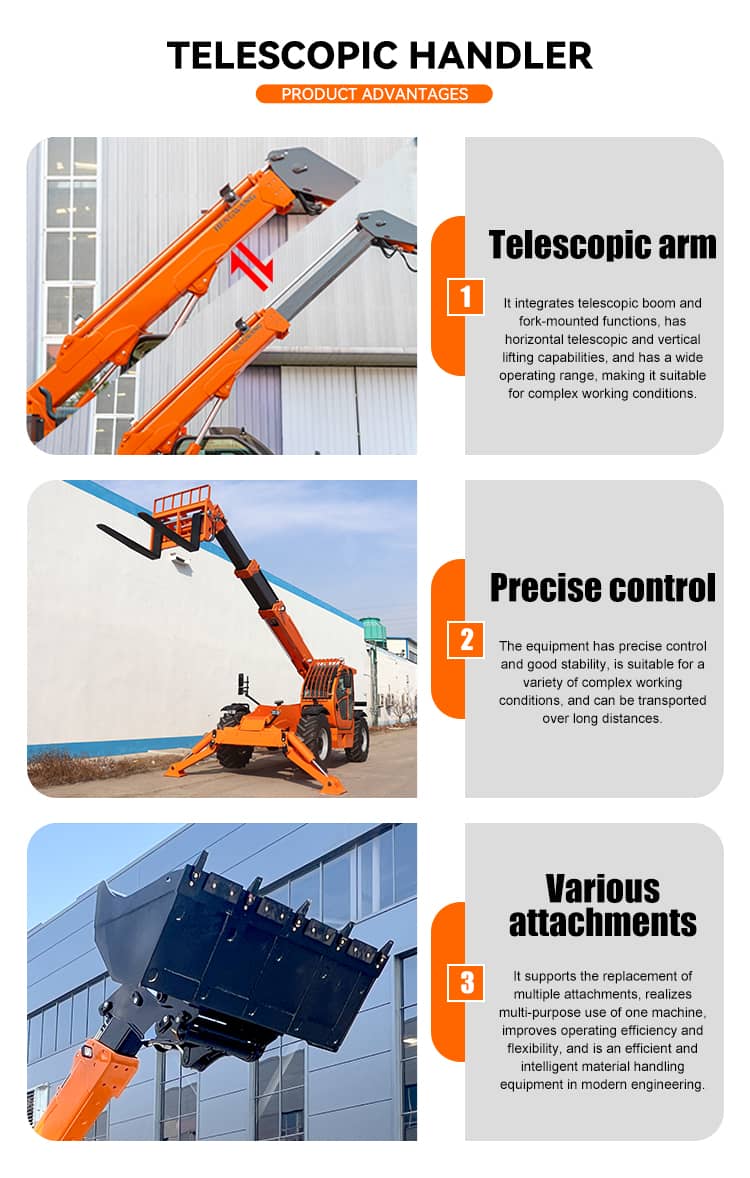

| Telescopic Boom | Hexagonal Integrated Bending | 3-Section Boom |
| Boom Material | High-strength Structural Steel | BS1000 High-strength Manganese |
| Frame Leveling | Supported (±8°) | Supported (Frame Tilt) |
| Tire Model | 17.5-25 | 440/80R24 Tubeless (Advance) |
| Max. Travel Speed | 32 km/h | 40 km/h |
| Fuel Tank Capacity | 140 L | 195 L |
| Hydraulic Oil Capacity | 135 L | 170 L |
| Display Screen | 10-inch (Opt: 360° Camera) | Luxury Cabin Standard |

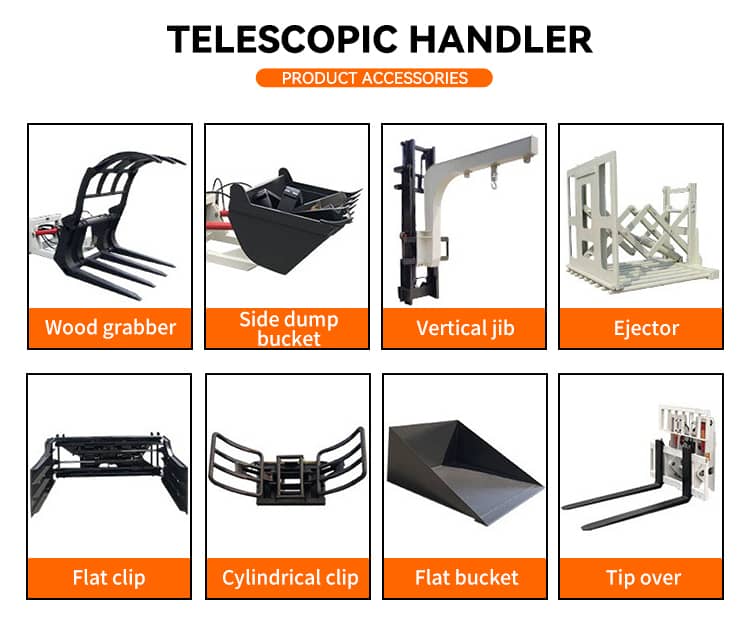

| Quick Hitch | Optional | Hydraulic Quick Coupler |
| Forks | Standard | 1,220 mm Floating/Sliding |
| Special Remarks | Compact Structural Design | Outriggers & Cast Iron Counterweight |
