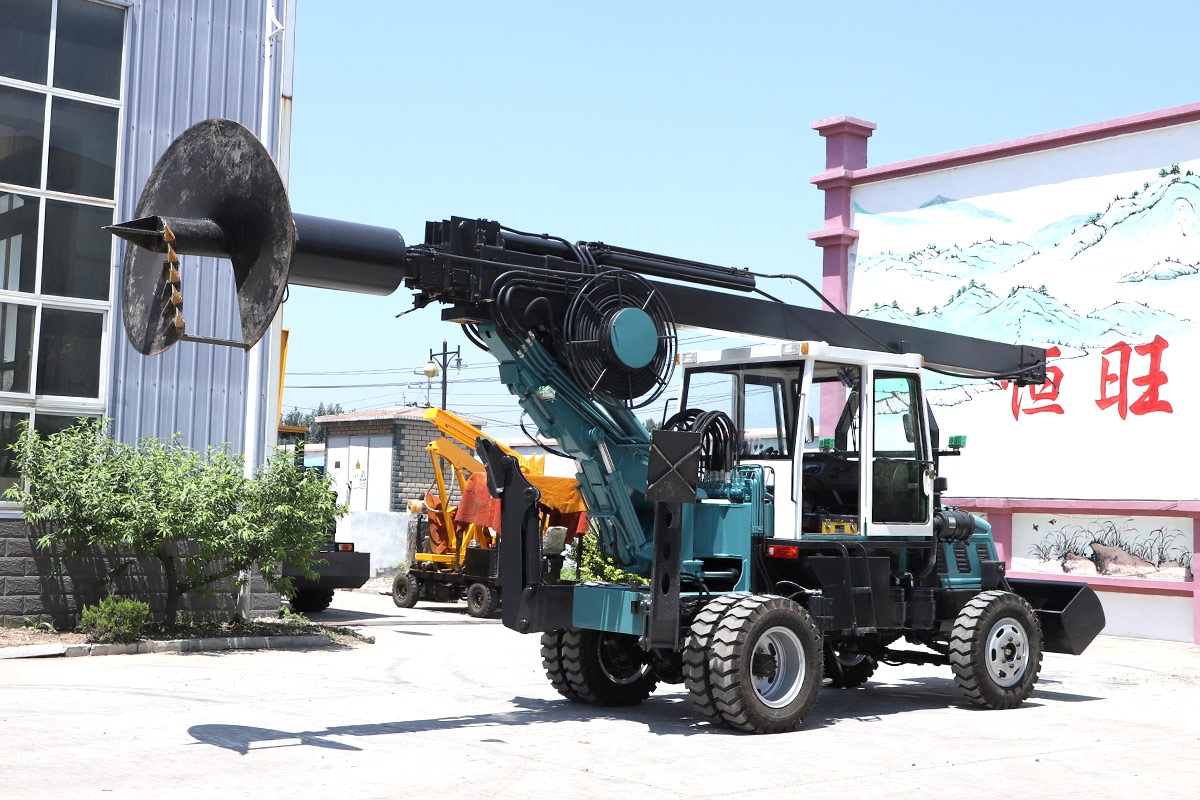

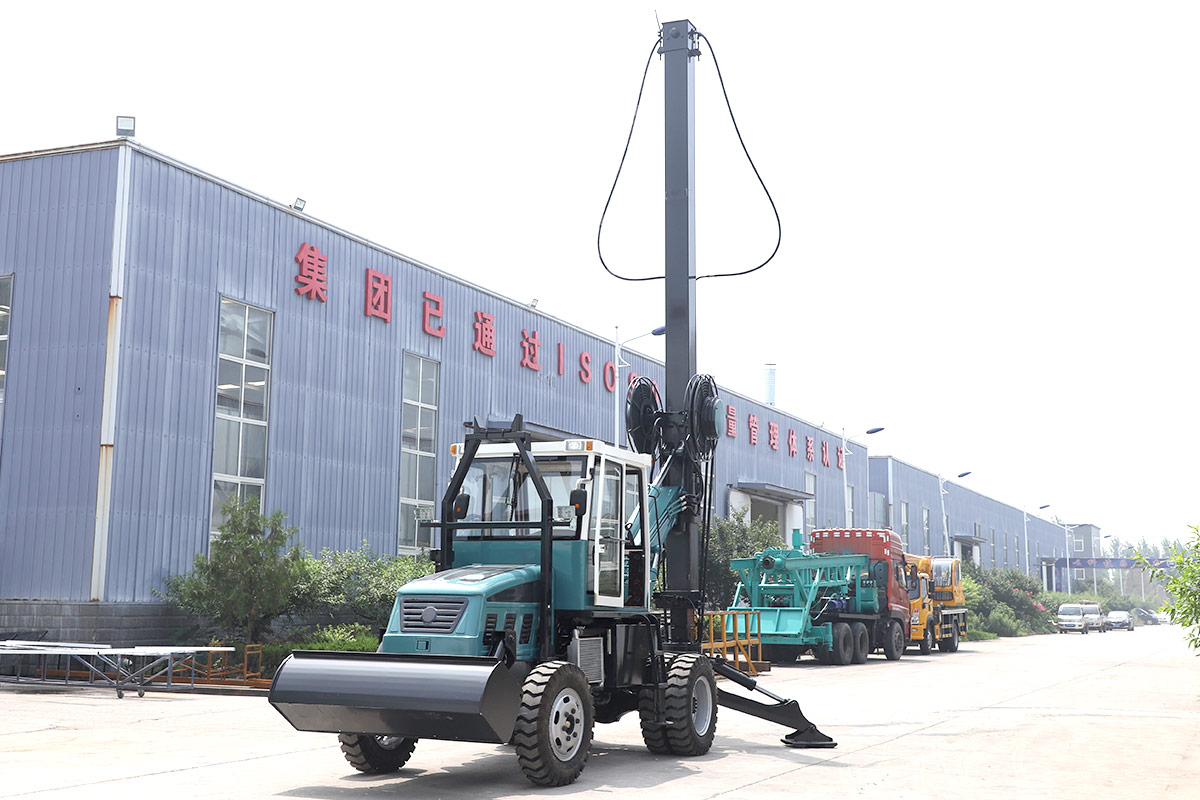

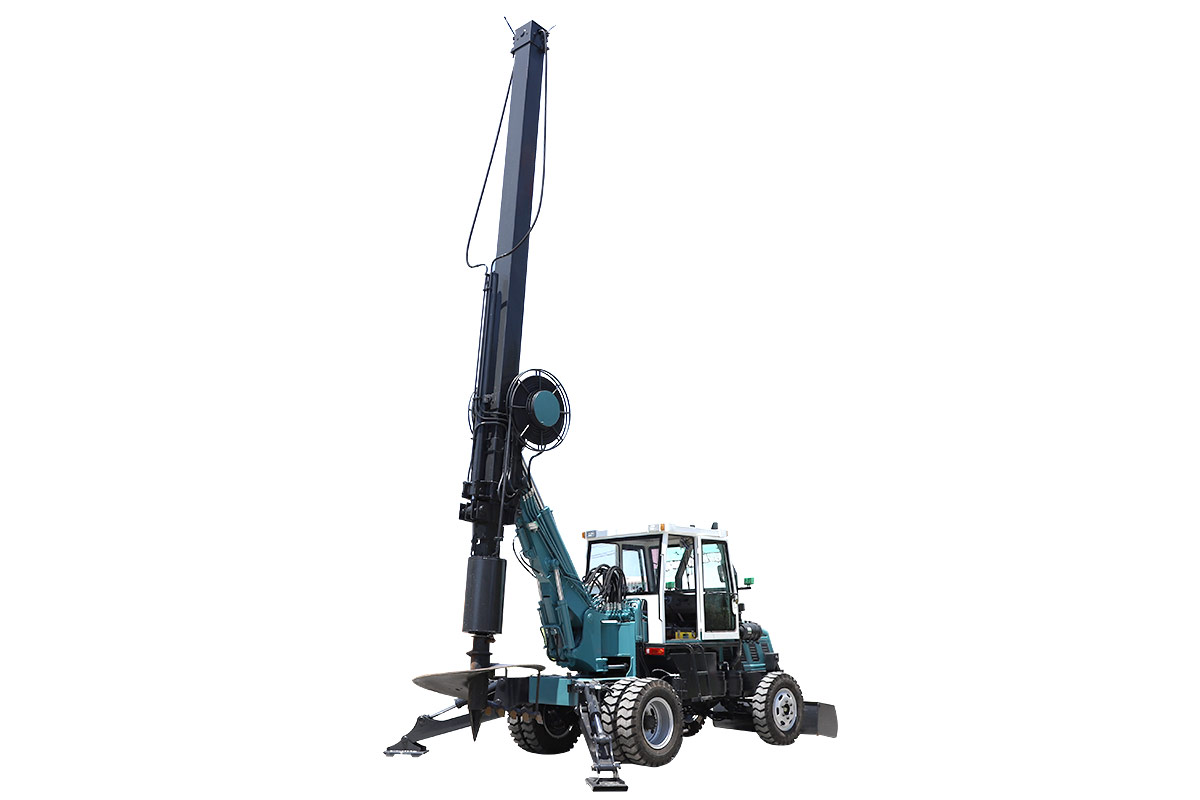

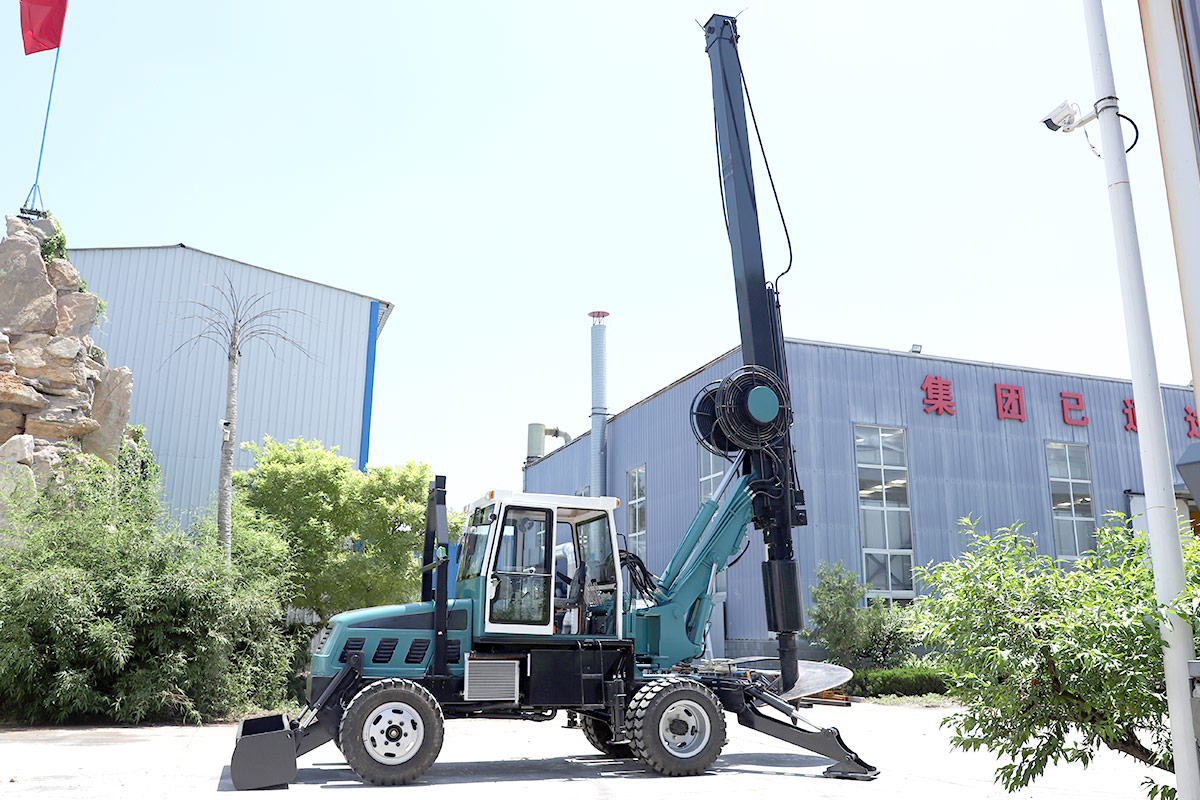

Wheel Rotary Pile Driver

Piling depth: 15m
Drill diameter: 400-2200mm
Engine power: 120-150Hp
Request a Quote contact@hengwang.cn 8613563755530
Product Introduce

Rotary drilling rig is a kind of construction machine suitable for hole formation in building foundation engineering.

Mainly suitable for sandy soil, cohesive soil, silty soil and other soil construction, widely used in cast-in-situ piles, continuous walls, foundation reinforcement and other ground foundation construction.

The output torque is 120 ~ 400kN • m, the maximum hole diameter can reach 1.5 ~ 4m, and the maximum hole depth is 60 ~ 90m, which can meet the requirements of various large foundation constructions.


ModelHWDR150D
Dimensions8700mm*2300mm*3200mm
Wheelbase3250mm
Wheel-track1600mm/Front, 1260mm/Rear
Vehicle weight9000 (KG)
Engine power120-150HP
Piling depth1-15 (m)
Drilling diameter400-2200 (mm)
Swing angle180°
Walking speed50 (km/h)
Working pressure of hydraulic system20-30 (Mpa)
Hydraulic system displacement80ml/r


After-sale Service

  • Comprehensive Quality Guarantee:

    We offer a 1-year warranty post-installation or 18 months after shipment (whichever comes first), ensuring reliable performance and your peace of mind.

  • 24/7 Customer Support:

    Our dedicated team provides 24/7 support, guaranteeing to resolve all technical issues within 24 hours for minimal downtime and smooth operations.

  • Regular Follow-Up and Maintenance Advice:

    We perform regular check-ins via phone or remote monitoring to proactively maintain your machinery, ensuring long-term safety, efficiency, and reliability.

  • End-to-End Logistics Support:

    We handle customs clearance, shipping, insurance, taxes, and documentation — so you can focus on business while we manage logistics smoothly.
