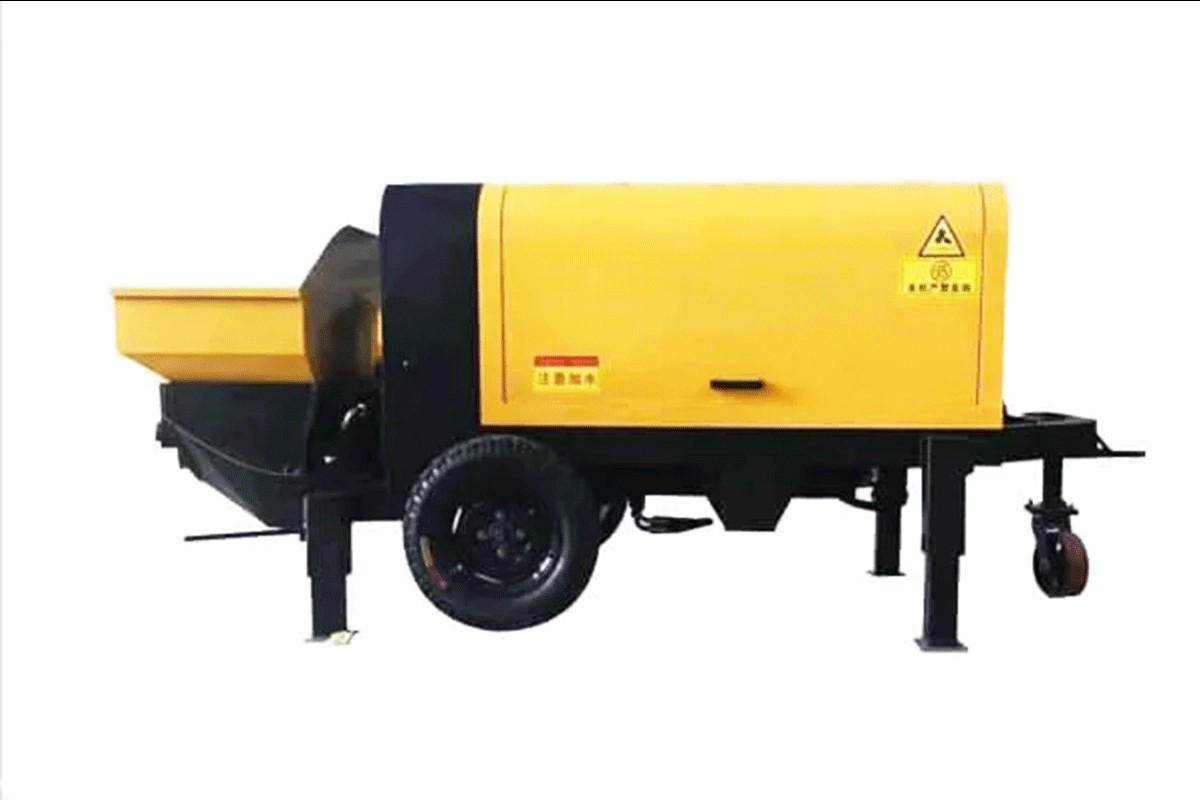

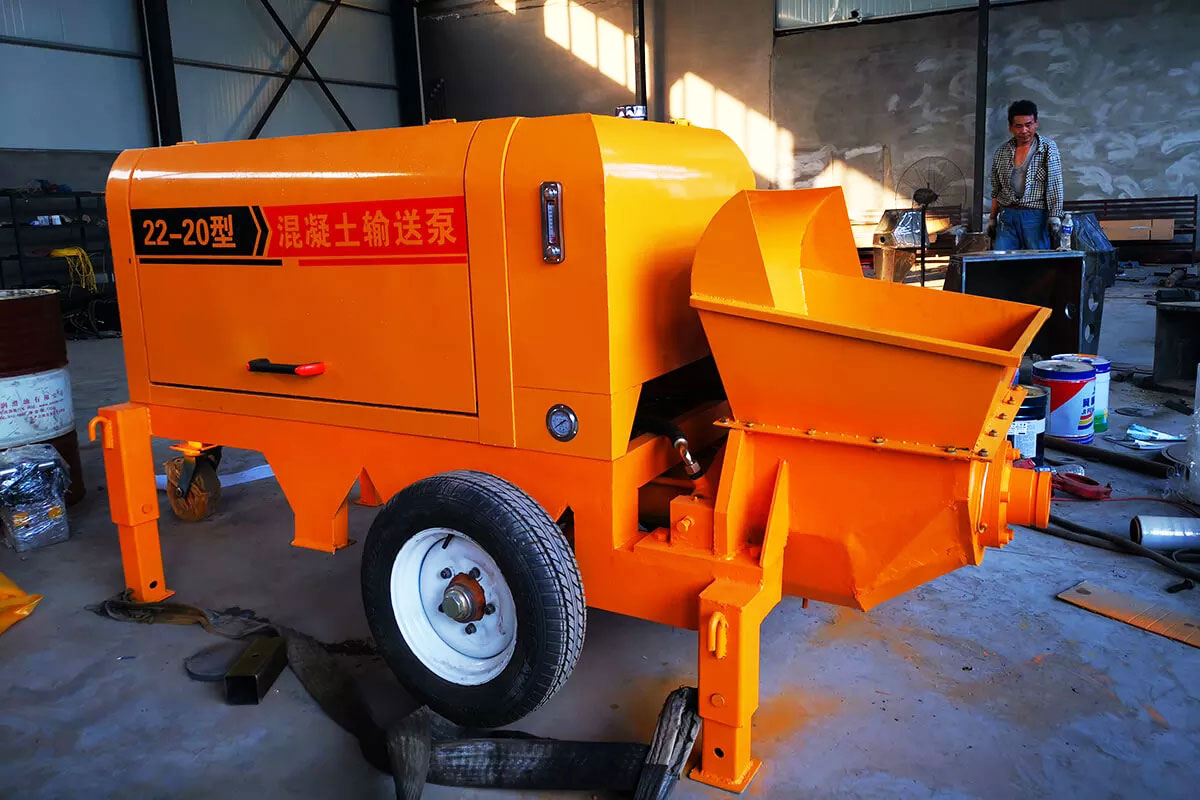

HW20-22 Concrete Pump

Rated Power: 22Kw
Aggregate size: 20mm
Output: 12m³/h
Product Introduce

1. Advanced s-tube valve is adopted to meet the delivery of concrete;

2. The glasses plate and cutting ing are made of high hardness and wear resisting allay material, with longer service life;

3. Import main oil pump with high output pressure can meet high-rise buildings and distance transportation requirements

4. The hydraulic oil is cooled by air cooling system, which has good cooling effect and is easy to use;


Model

HW20-22

Power

22kw

Voltage

380V

Vertical delivery distance

50m

Horizontal delivery distance

80m

Output

12m3/h

Max.Aggregate size

20mm

Outlet diameter

120mm

Cylinder stroke

650mm

Pipe diameter

100mm

Dimension

2100*780*1200mm

Weight

900kg

After-sale Service
  • Comprehensive Quality Guarantee:

    We offer a 1-year warranty post-installation or 18 months after shipment (whichever comes first), ensuring reliable performance and your peace of mind.
  • 24/7 Customer Support:

    Our dedicated team provides 24/7 support, guaranteeing to resolve all technical issues within 24 hours for minimal downtime and smooth operations.
  • Regular Follow-Up and Maintenance Advice:

    We perform regular check-ins via phone or remote monitoring to proactively maintain your machinery, ensuring long-term safety, efficiency, and reliability.
  • End-to-End Logistics Support:

    We handle customs clearance, shipping, insurance, taxes, and documentation — so you can focus on business while we manage logistics smoothly.
