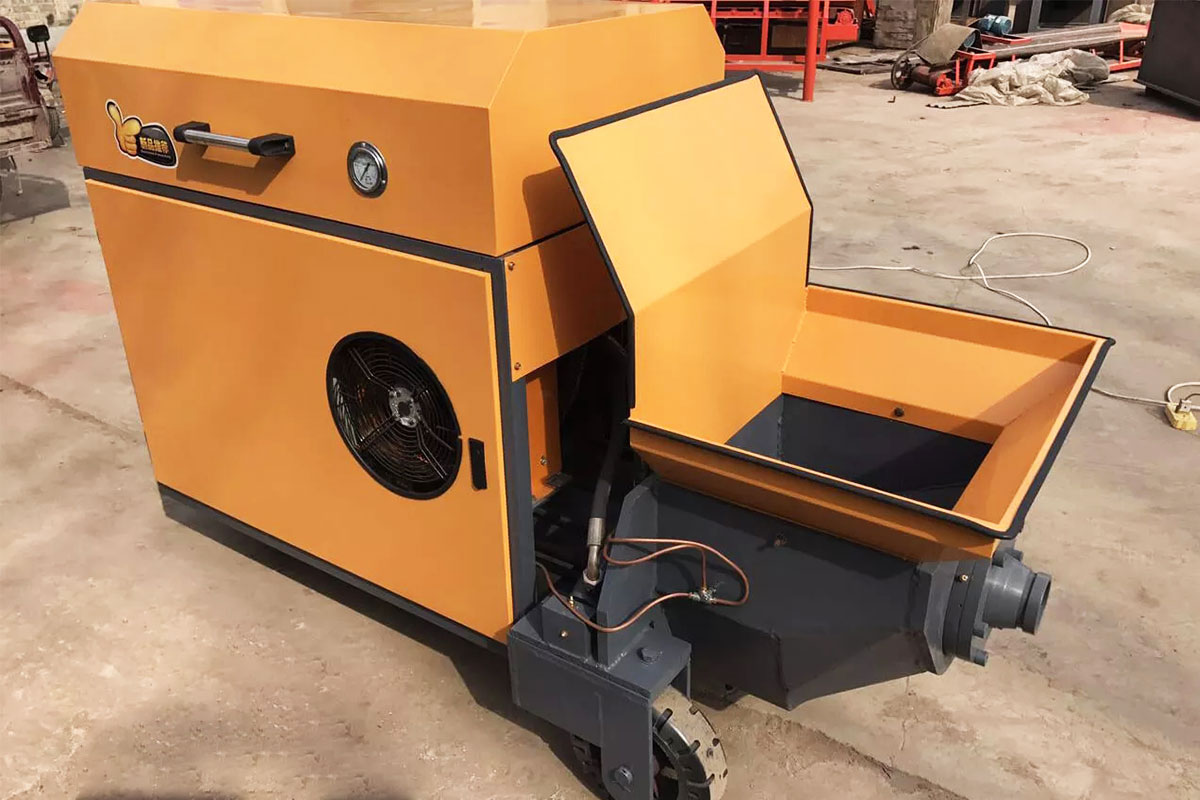

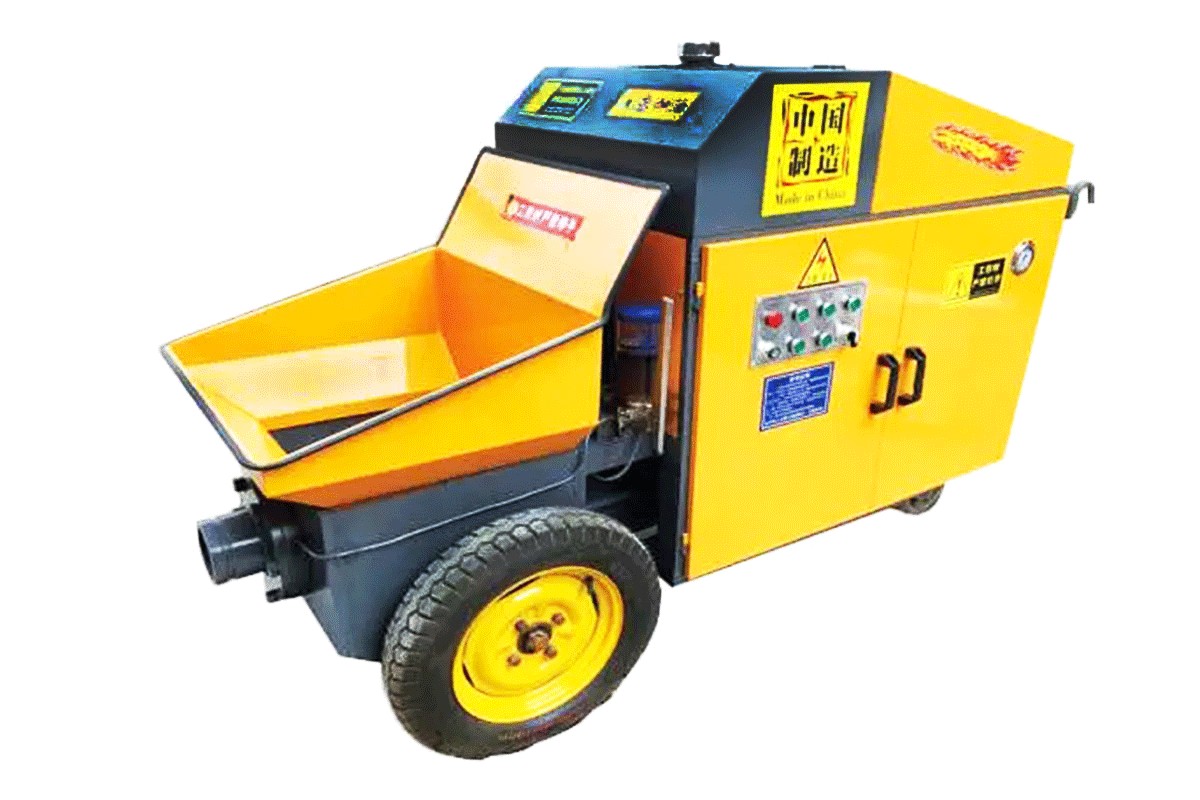

HW15-15 concrete pump is used in the transportation of mortar and concrete in high-rise buildings.Various types of secondary structural column grouting,reservoirs, hydropower stations, ports and wharfs Pressure grouting, foundation treatment soft foundation,reinforcement grouting, tunnel, etc.Backfill grouting bolt support in subway and mine construction.
HW15-15 concrete pump uses hydraulic feeding, double cylinder reciprocating operation of vibrating screen filter can completely transport construction various kinds of mortar, concrete .etc used in construction.
HW15-15 concrete pump has big displacement and high pressure, labor-saving,material-saving, flexible movement. It is an ideal equipment to delivery mortar.
Model | HW15-15 |
Power | 15kw |
Voltage | 380V |
Vertical delivery distance | 30m |
Horizontal delivery distance | 50m |
Output | 8m3/h |
Max.Aggregate size | 15mm |
Outlet diameter | 80mm |
Cylinder stroke | 350mm |
Pipe diameter | 80mm |
Dimension | 1750*700*1200mm |
Weight | 650kg |
