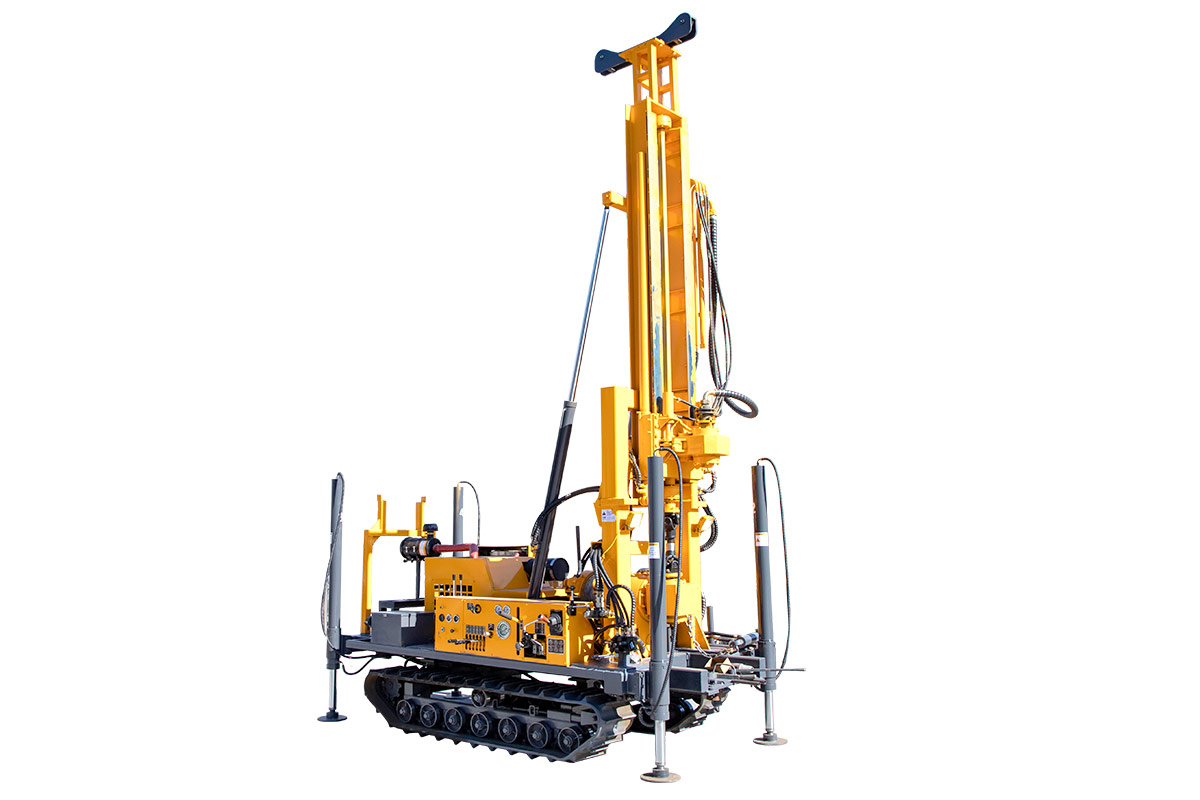

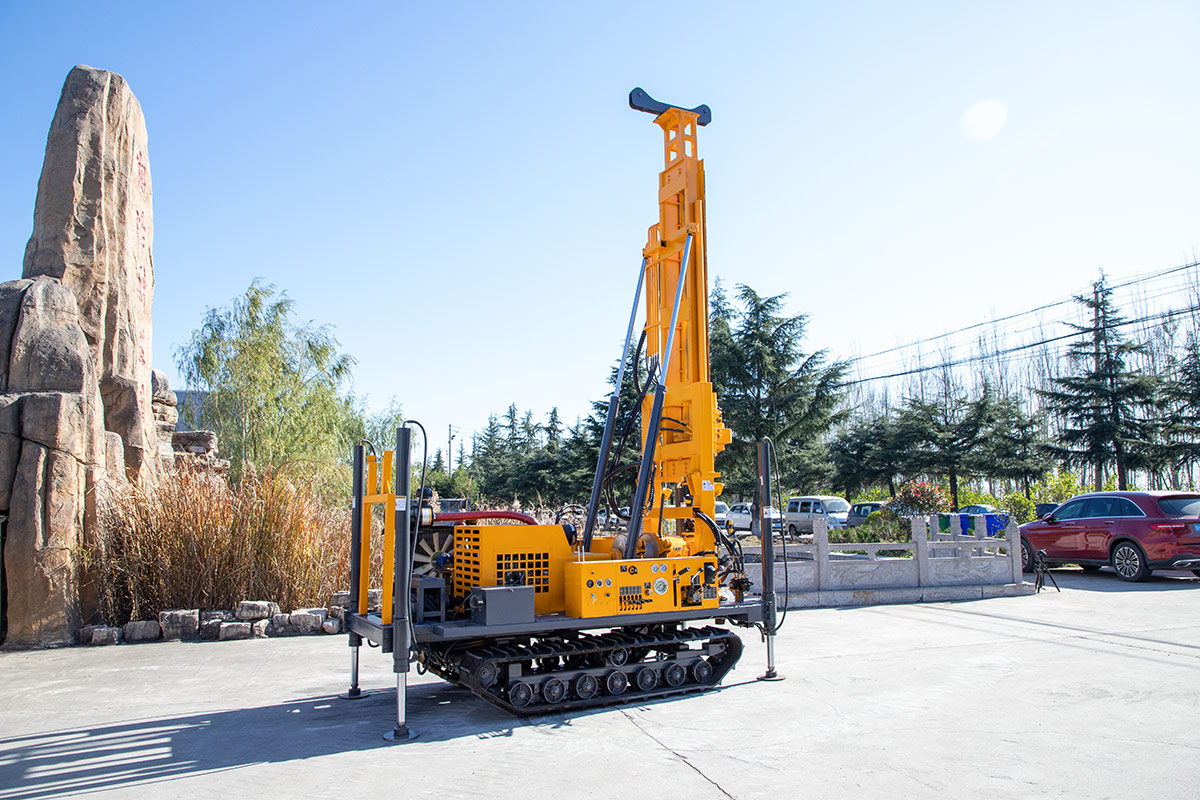

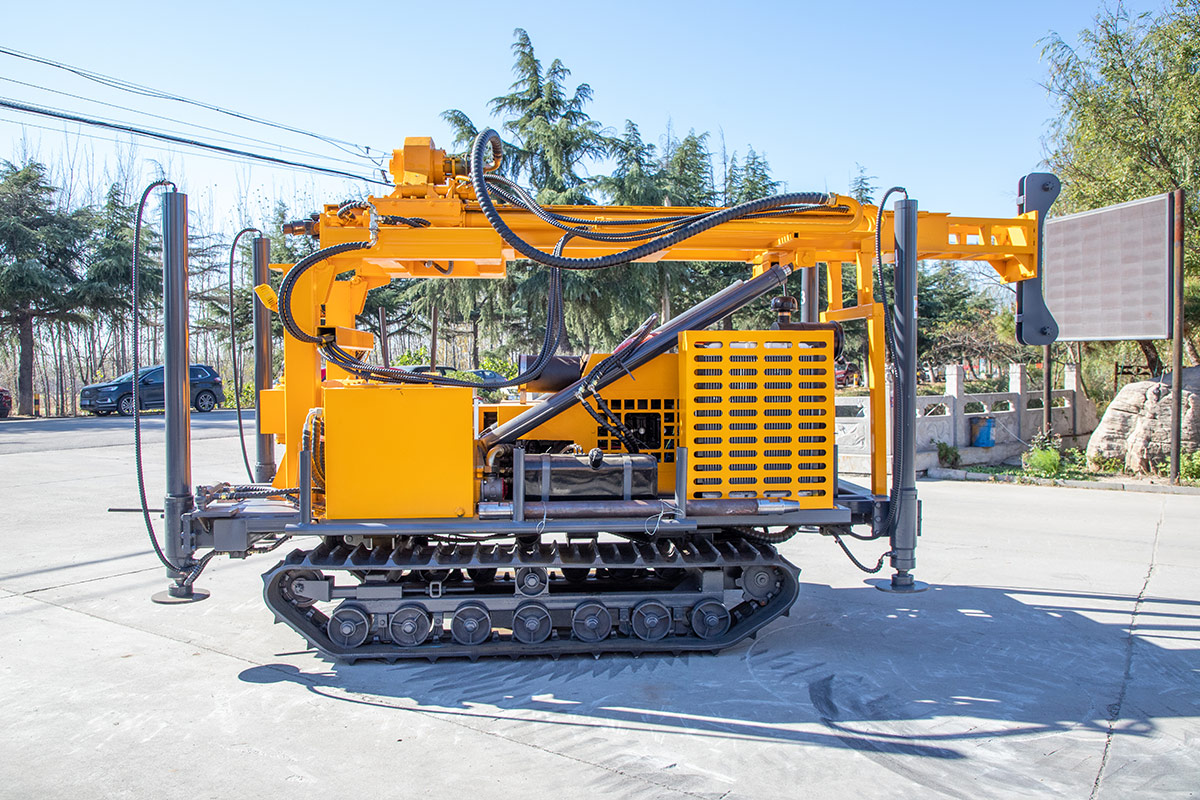

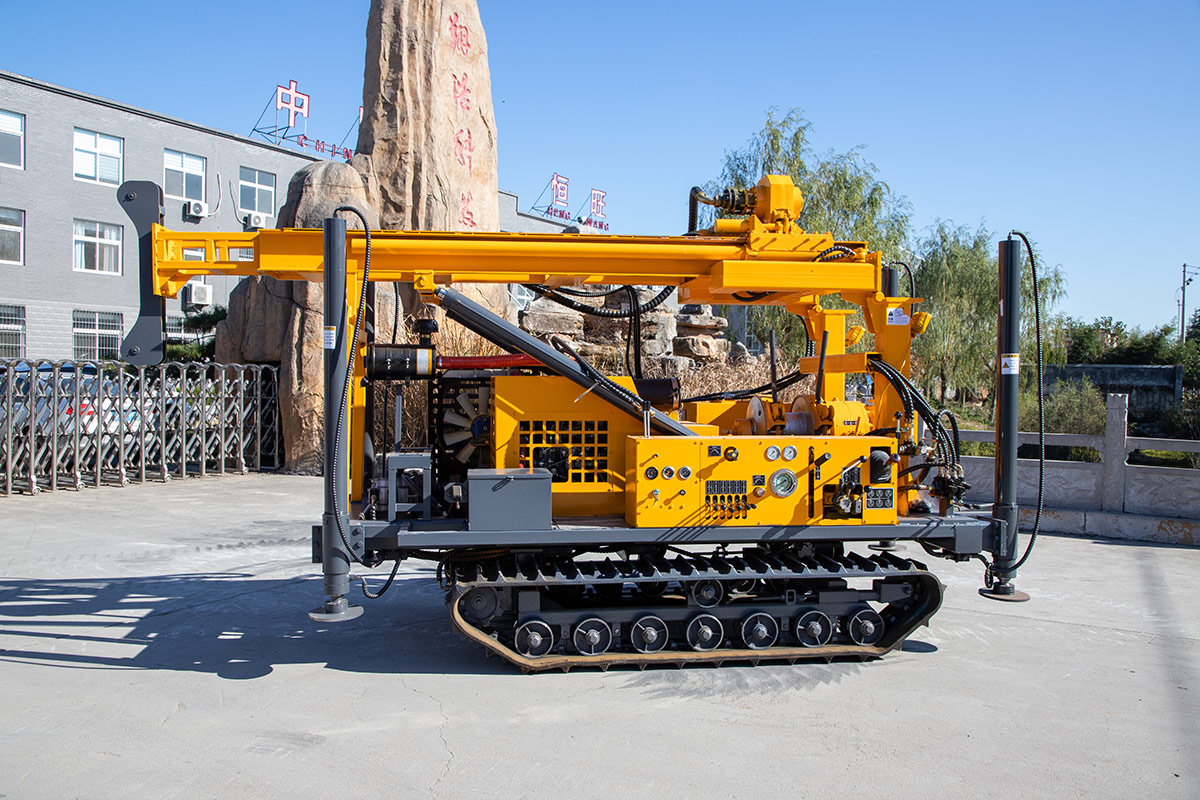

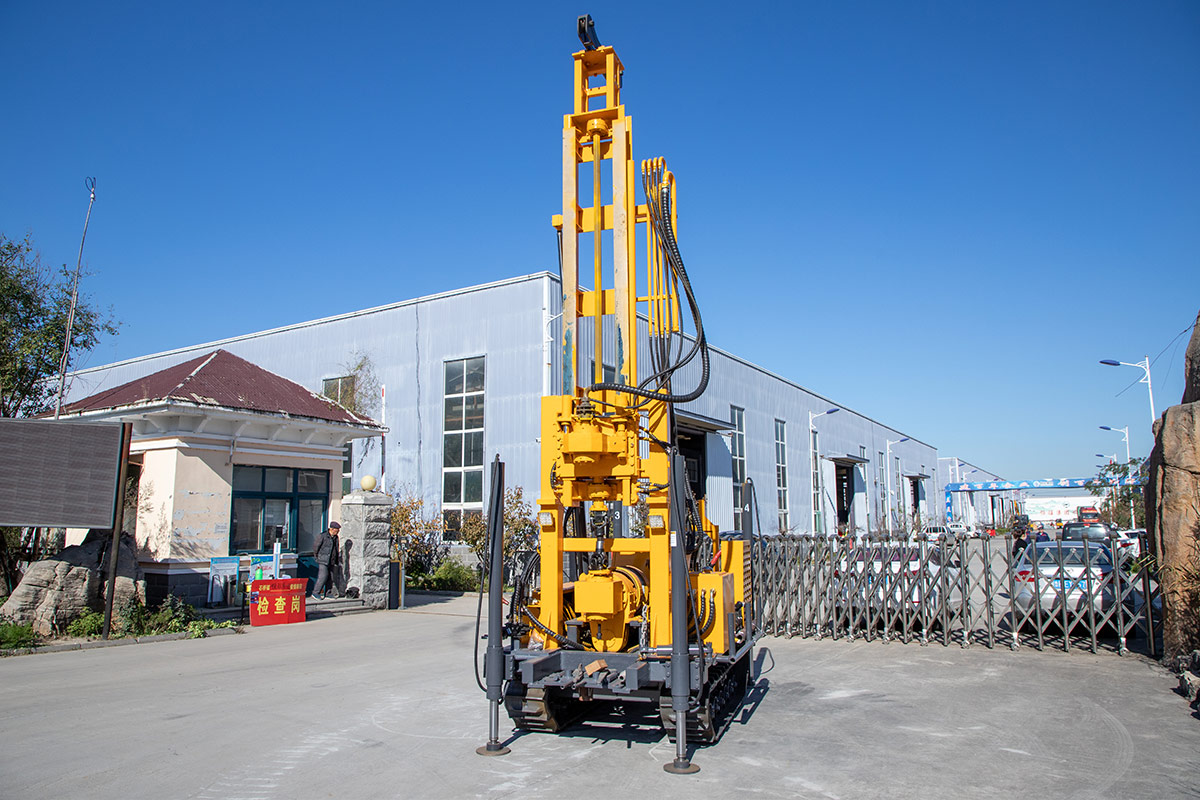

HWDL-280 Mud/air Drilling Rig

Drilling depth: 200m
Drilling diameter: 75-350mm
Engine Power: 42Kw

Product Introduce

HWDL-280 pneumatic water well drilling rig is a lightweight, efficient and multifunctional drilling equipment.

Suitable for industrial, civil drilling and geothermal drilling projects.

Main features:

1. High power, fast drilling speed and low unit fuel consumption;

2. Tracked chassis improves off-road performance.

Model	HWDL280
Drilling depth	200m (152mm~203mm)
Rope core-drilling 75mm bore diameter	300m
Drilling diameter	Ø75～Ø350mm
Drilling angle	90°
Lifting force	100KN
Propulsive force	50KN
Rotating speed	Forward: 33-1120r/min
Rotating speed	Reverse: 37/180r/min
Maximum torque	9800N.m
Transport dimension	460017002400mm
Working state dimension	320023005600mm

Due to the continuous update and progress of technology, technical parameters and configurations are subject to actual delivery.
