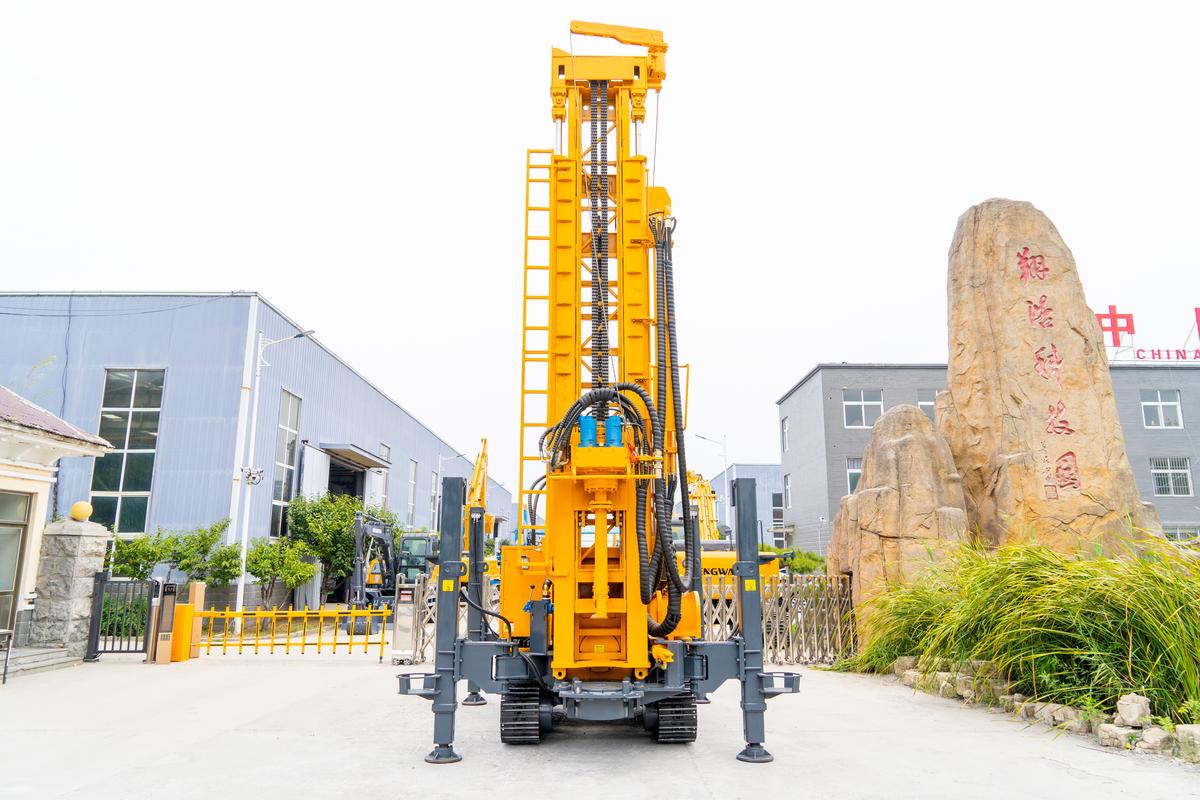

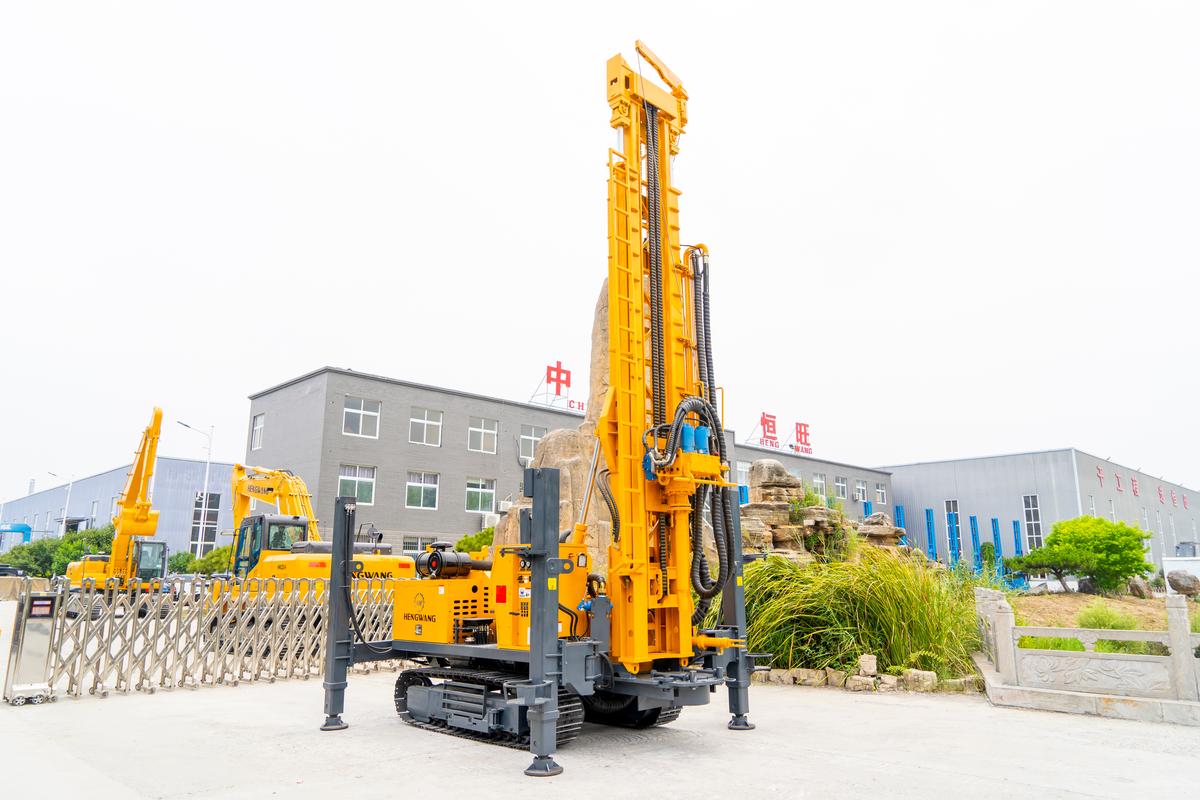

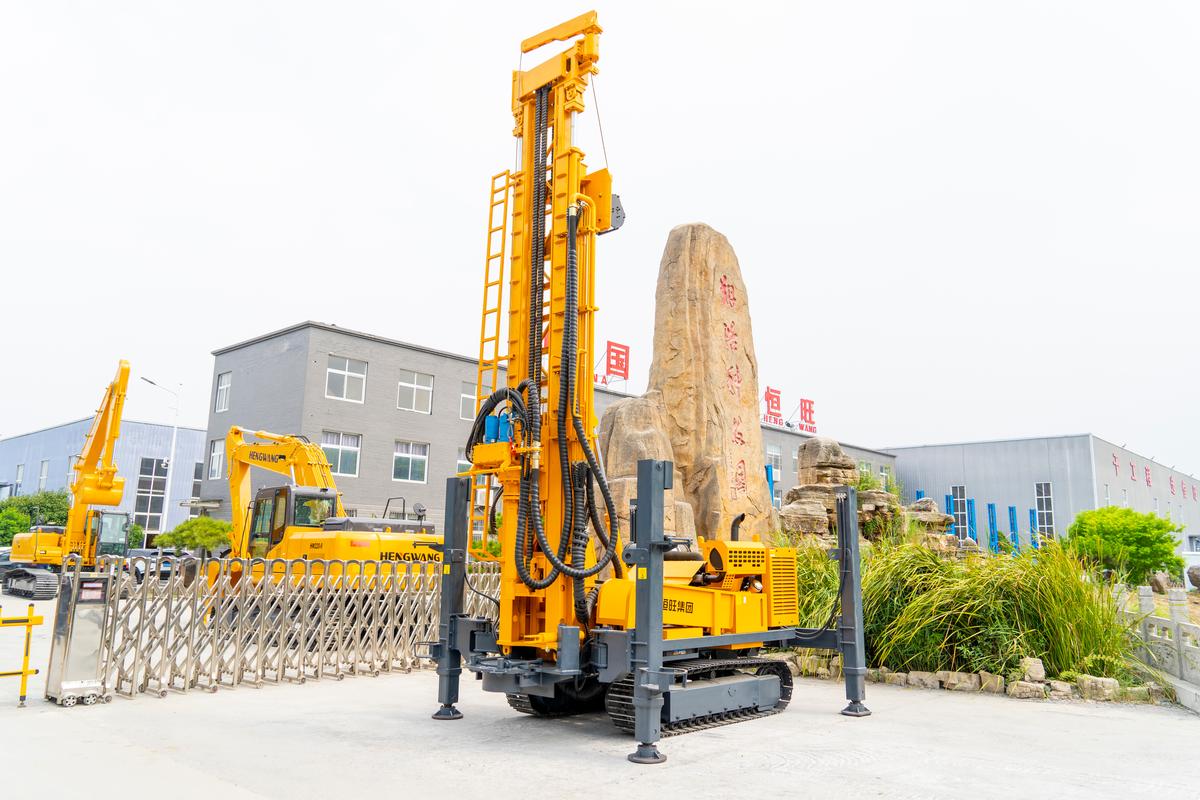

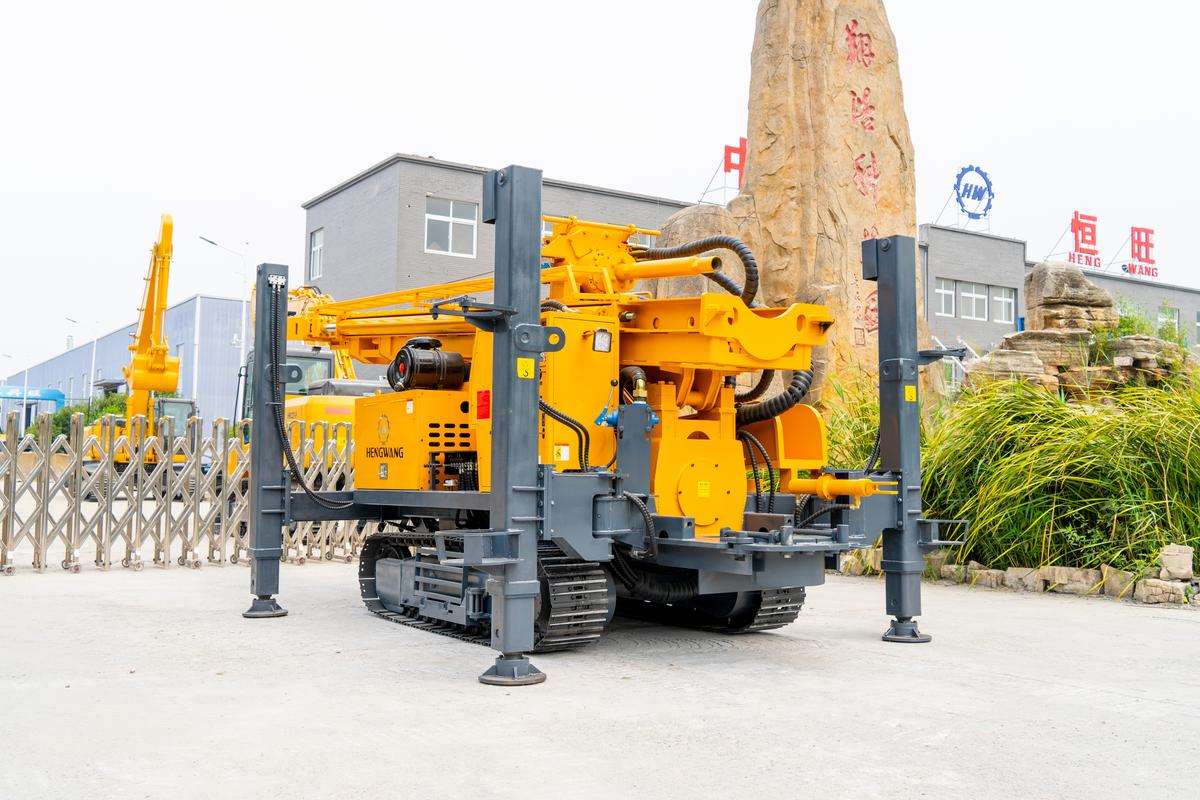

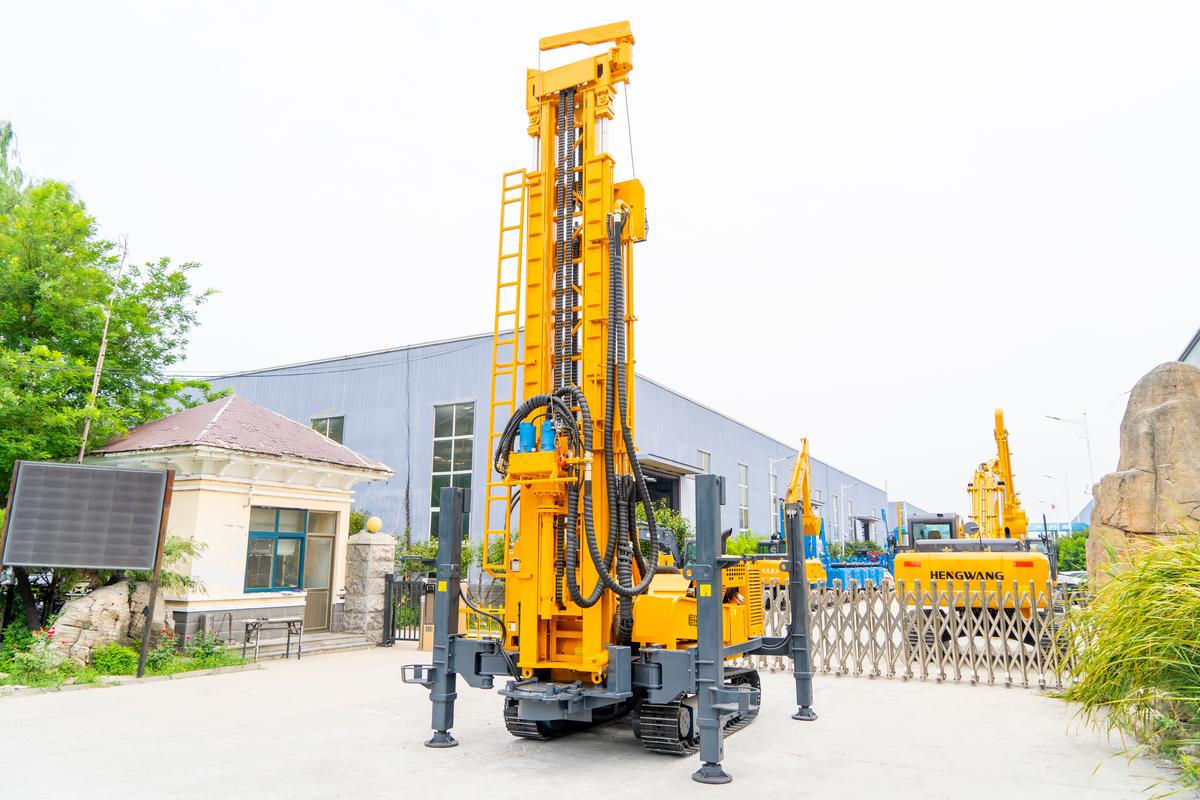

HW-500S Pneumatic Drill Rig

Drilling depth: 500m
Drilling diameter: 105-400mm
Engine Power: 110Kw

Product Introduce

Model	HW-500S
Engine	Yuchai Co., Ltd. (Euro II)
Power	110 kW
Main Pump	High-Pressure Gear Pump
Maximum Drilling Depth	500 m
Drilling Diameter	105–400 mm
Working Air Pressure (MPa)	1.2–3.5 MPa
Total Air Consumption	16–55 m³/min
Drill Rod Length	6 m
Drill Rod Diameter	Φ89/Φ102
Lifting Capacity	6 t / Lifting Capacity: 30 t
Slow Lifting Speed	4 m/min / Slow Feed Speed: 0.5-5 m/min
Fast Lifting Speed	29 m/min / Fast Feed Speed: 48 m/min
Rotational Torque	10,000/5,000 Nm
Rotational Speed	0–75 r/min; 0–150 r/min
Feed Efficiency	10–35 m/h
Travel Speed	2.5 km/h
Climbing Ability	21°
Machine Weight	10.5 t
Dimensions	6.2 × 1.85 × 2.55 m
Applicable Rock Conditions	Loose Layers and Bedrock
Drilling Method	Drilling with Down-the-Hole Hammer
With Impactor	High Air Pressure Series
