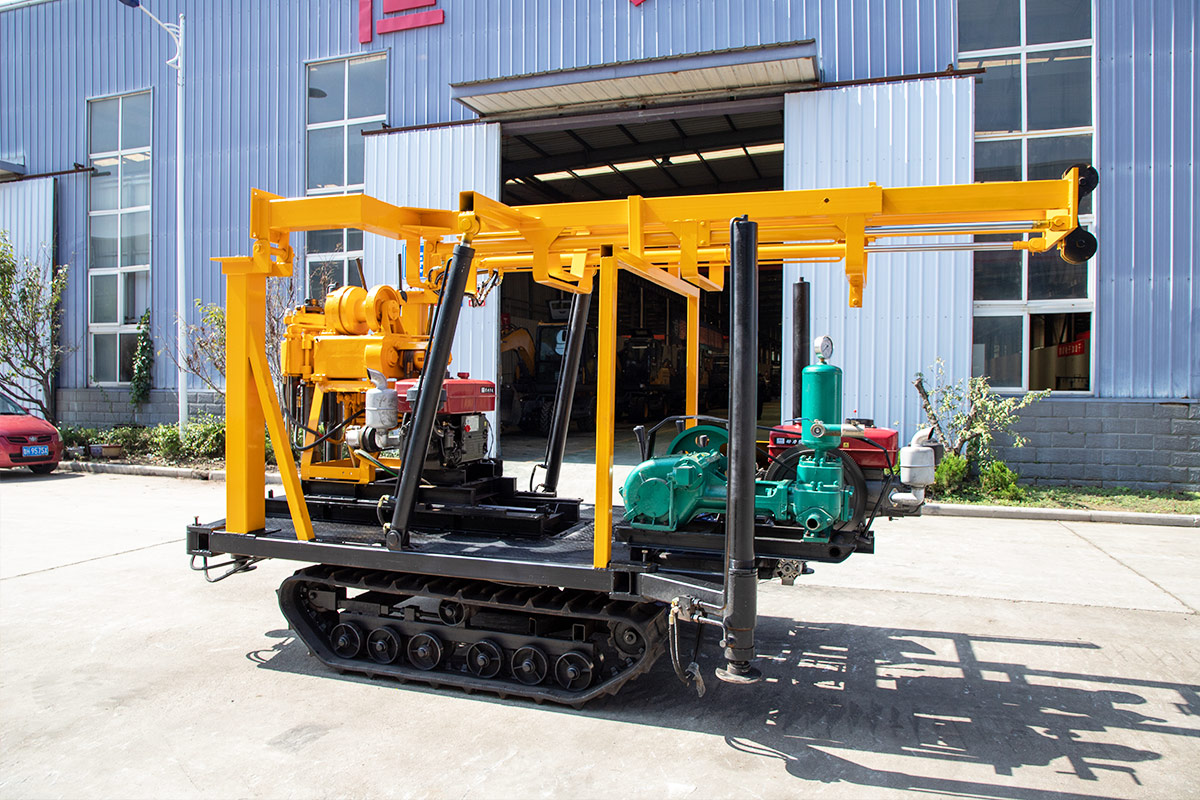

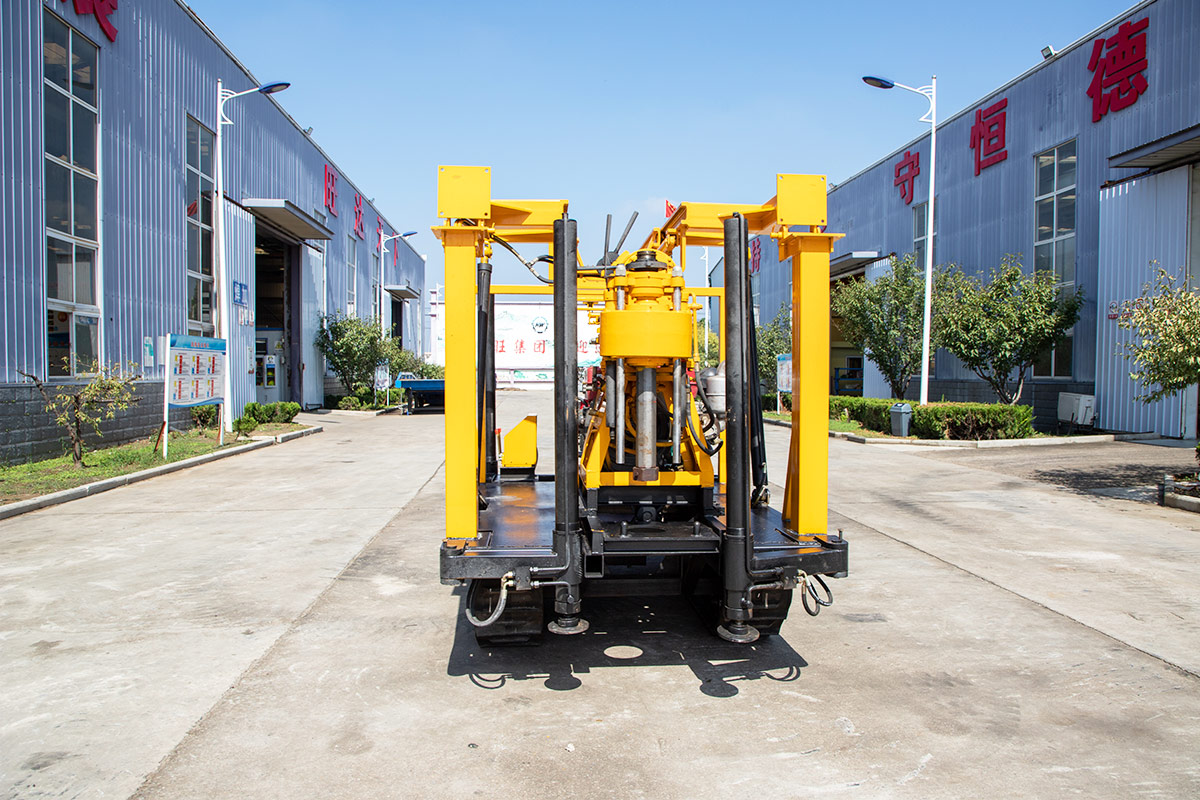

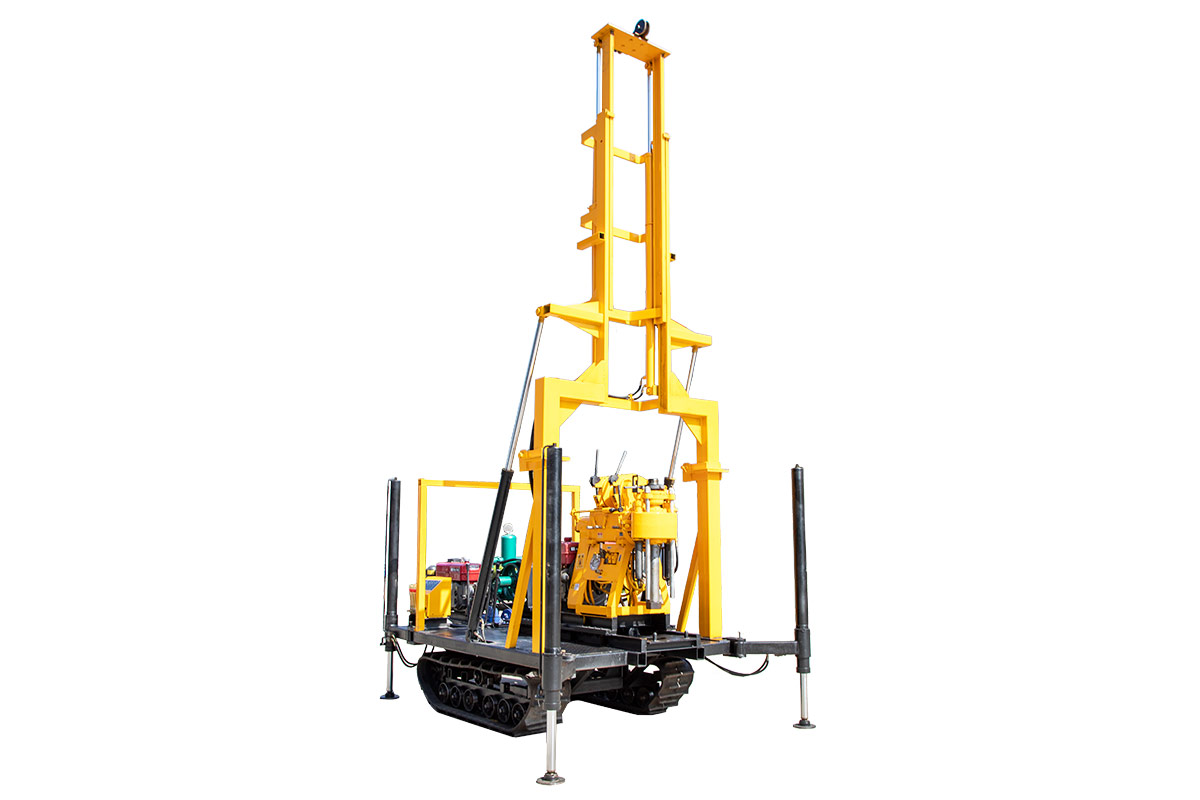

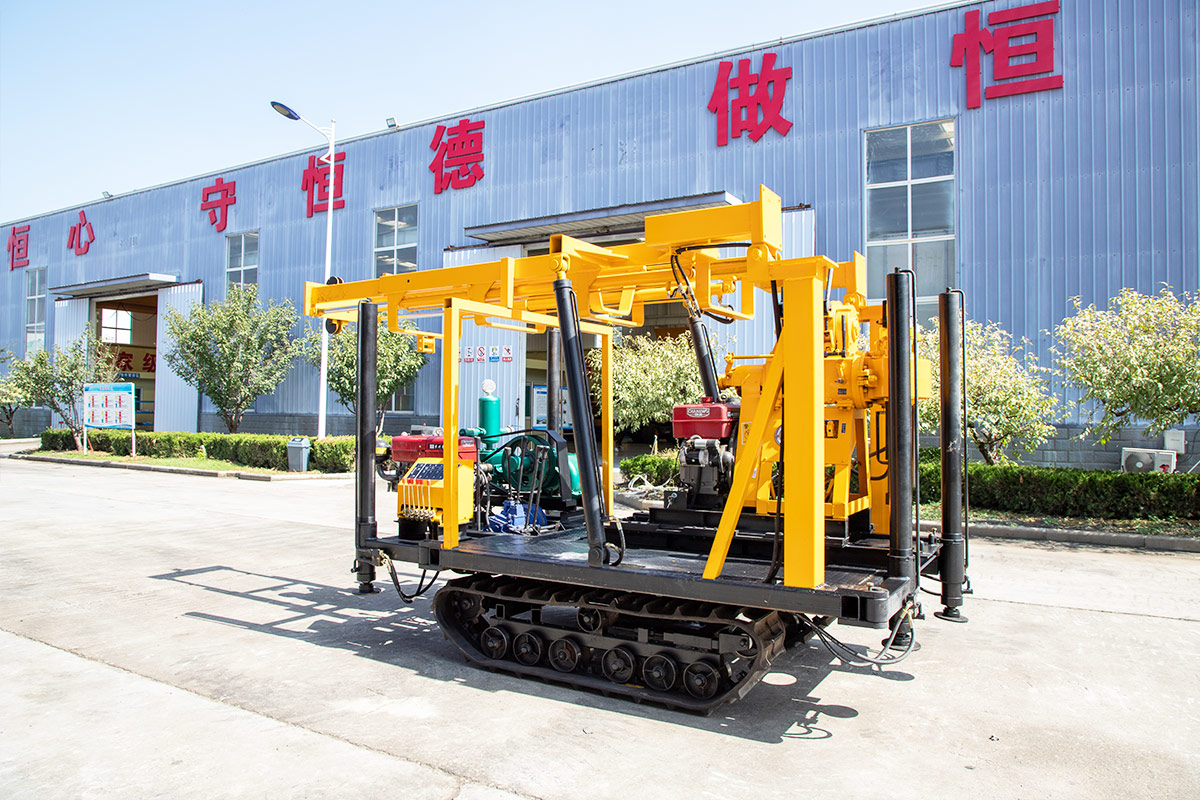

Hengwang Hydraulic Drilling Rig Series
Hengwang Group water well drilling rig is a professional water well drilling equipment, mainly used for industrial drilling, low temperature drilling and agricultural drilling. Wireline coring rigs can be used for geological exploration as well as SPT soil testing.
>>> Product Details <<<
Main feature:

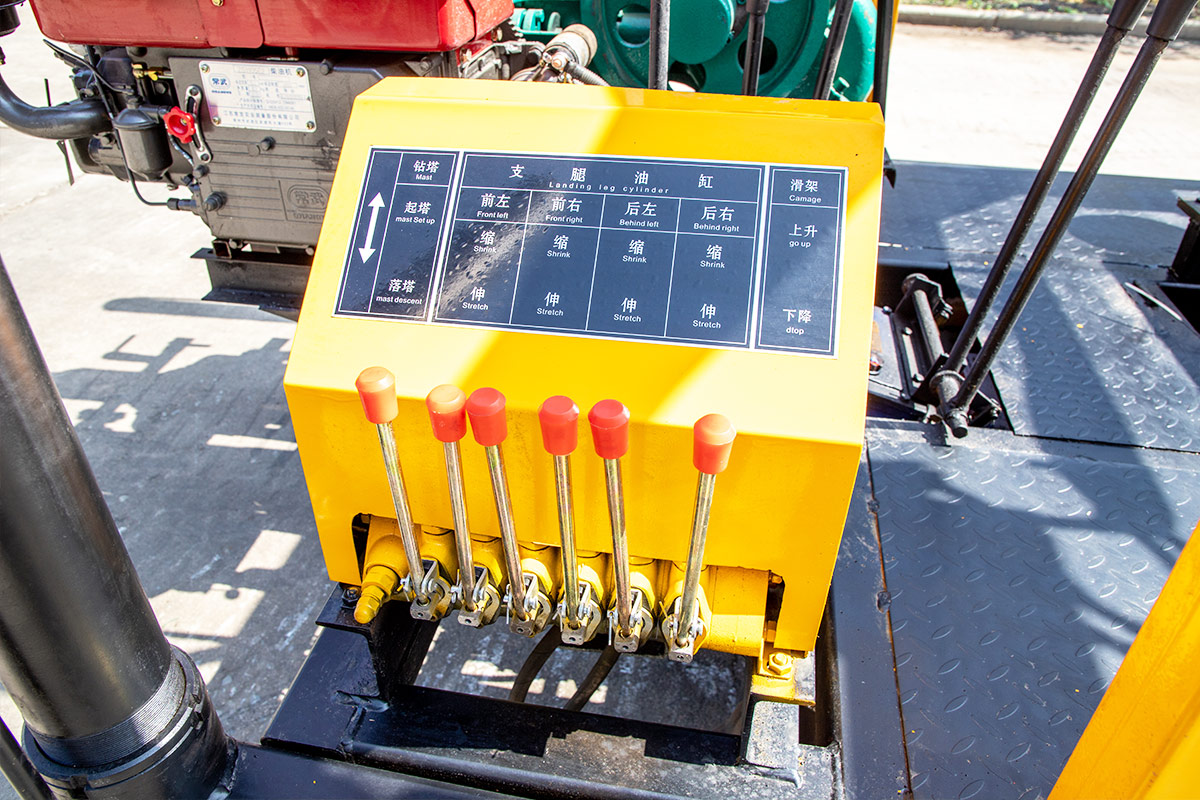

1.High hydraulic outriggers can be loaded and unloaded without crane drilling rig;

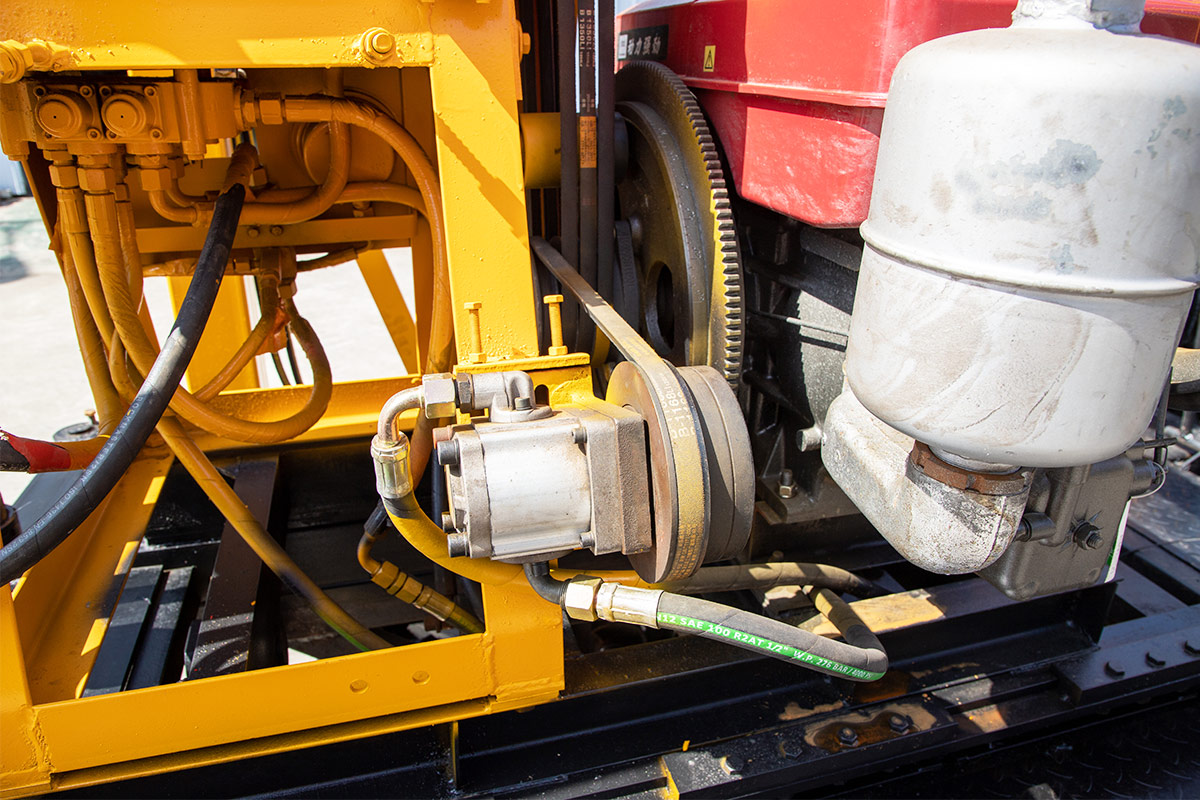

2. Hengwang well drilling equipment is specially designed for the perfect match between the engine and the hydraulic system, which improves performance and reduces fuel consumption by 7%;
3. The rotation speed, torque, thrust axial pressure, reverse axial pressure, thrust speed, and lifting speed of the drilling rig can be adjusted at any time to meet the needs of different drilling tool operating conditions and different construction processes.
| model | HW230L | |
| Drilling depth | 230 | m |
| Opening diameter | 500(Soil)/220(Rock) | mm |
| final hole diameter | 75 | mm |
| Drill pipe diameter | 42-50 | mm |
| Drilling angle | 90-75 | ° |
| Engine power | 15 | kw |
| weight | 3300 | kg |
| Machine size | 3800*1950*2700 | mm |
| Vertical shaft speed | 130/300/480/730/830/1045 | r/min |
| Vertical axis travel | 450 | mm |
| Single rope lifting force | 2100 | kg |
| Single rope lifting speed | 0.35-2.23 | m/s |
| Wire rope diameter | φ9.3 | mm |
| Wire rope capacity | 27 | m |
| Rated load | 18 | Ton |
| effective height | 6.5 | m |
| flow | 95 | L/Min |
| greatest pressure | 1.2 | Mpa |
| Optional configuration | Walking Gantry | |
Remark:
This product is continuously improved as technology advances. The difference between the parameters and the actual product is subject to the actual product.
