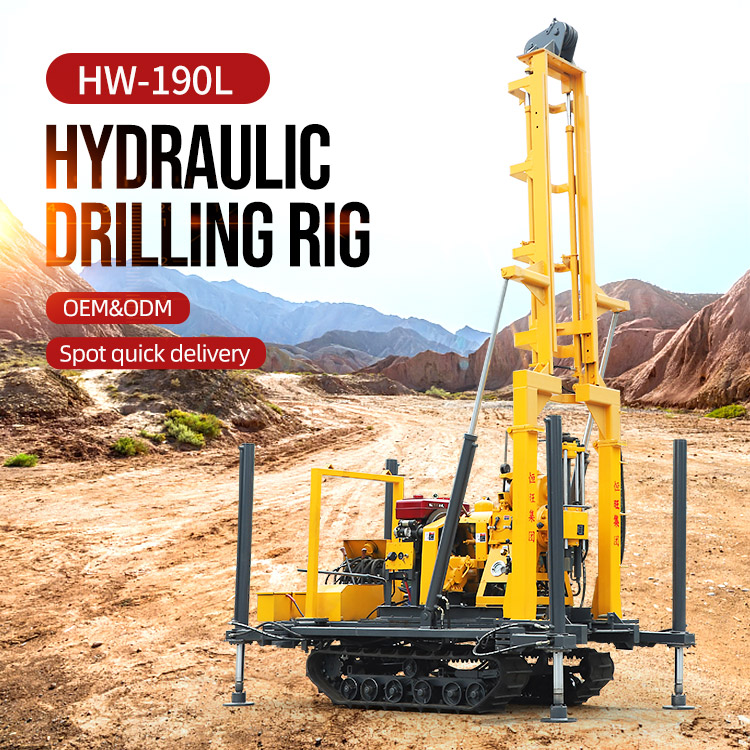

| model | HW190L | |
| Drilling depth | 190 | m |
| Opening diameter | 500(Soil)/220(Rock) | mm |
| final hole diameter | 75 | mm |
| Drill pipe diameter | 42-50-60 | mm |
| Drilling angle | 90-75 | ° |
| Engine power | 13.2 | kw |
| weight | 3250 | kg |
| Machine size | 3800*1950*2700 | mm |
| Vertical shaft speed | 64/128/287/557 | r/min |
| Vertical axis travel | 450 | mm |
| Single rope lifting force | 2500 | kg |
| Single rope lifting speed | 0.12-0.95 | m/s |
| Wire rope diameter | φ12.5 | mm |
| Wire rope capacity | 35 | m |
| Rated load | 18 | Ton |
| effective height | 6.5 | m |
| flow | 145 | L/Min |
| greatest pressure | 1.2 | Mpa |
| Optional configuration | Motor | |
Due to the continuous update and progress of technology, technical parameters and configurations are subject to actual delivery.
Features
1. Its sturdy construction does not compromise its versatility.

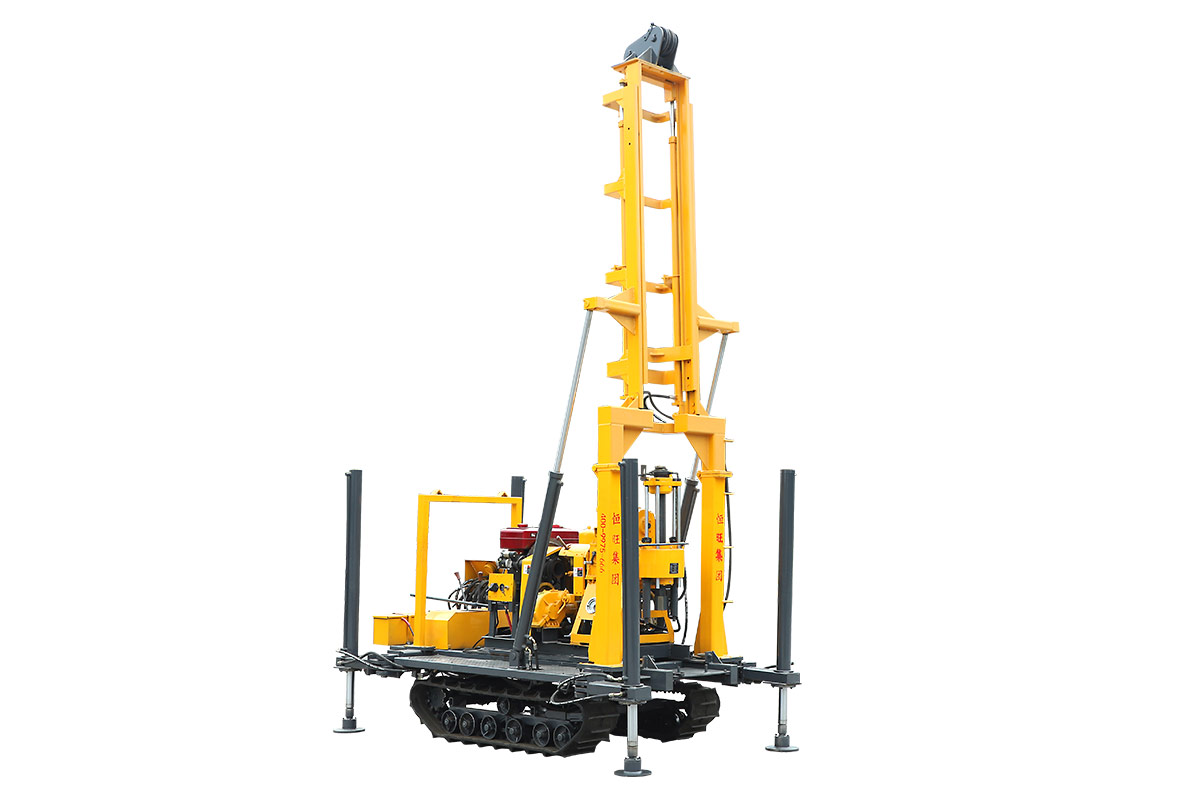

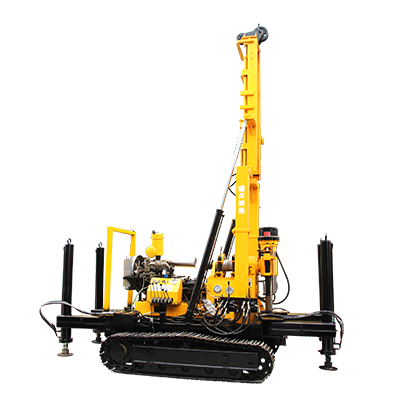

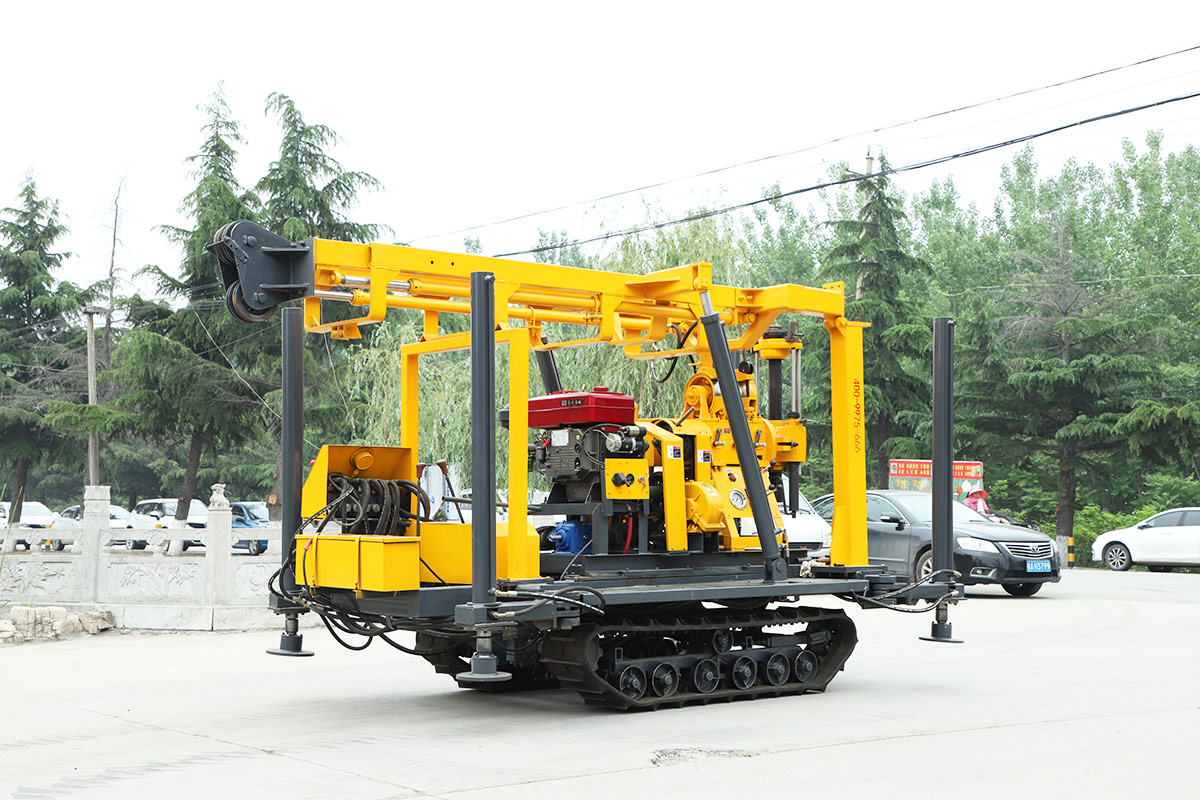

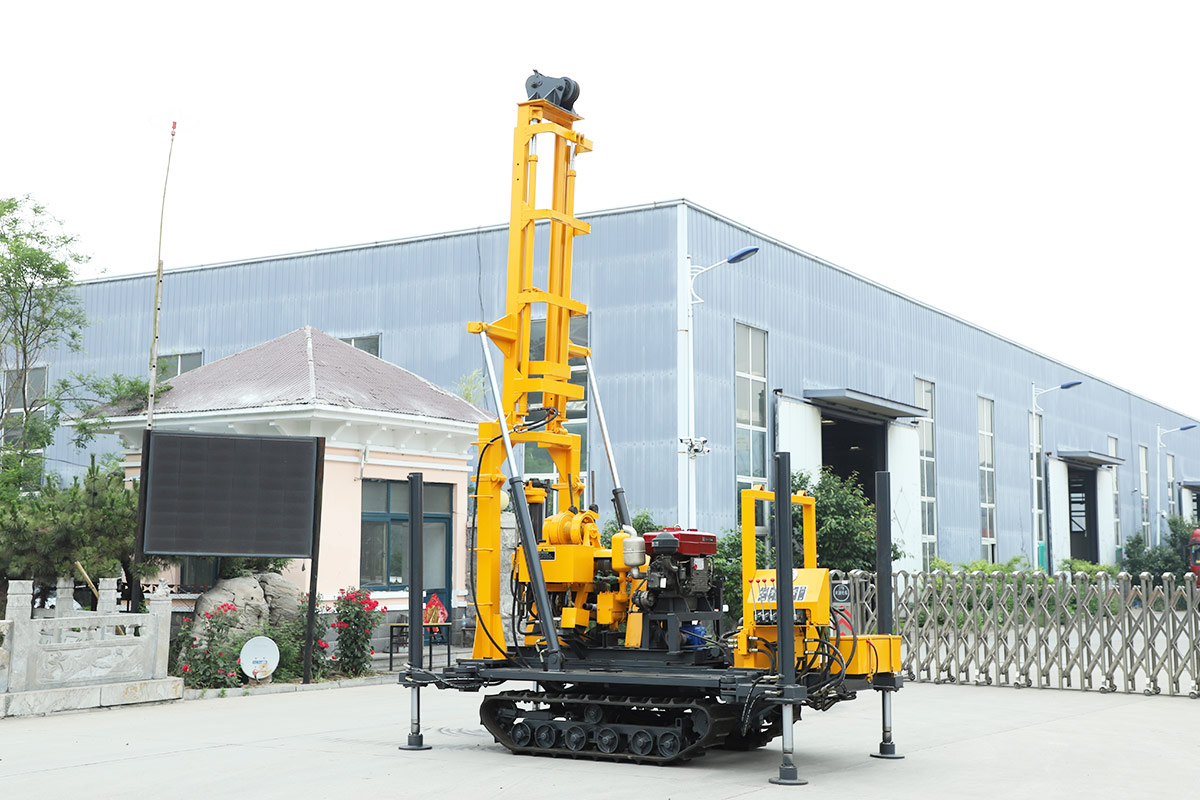

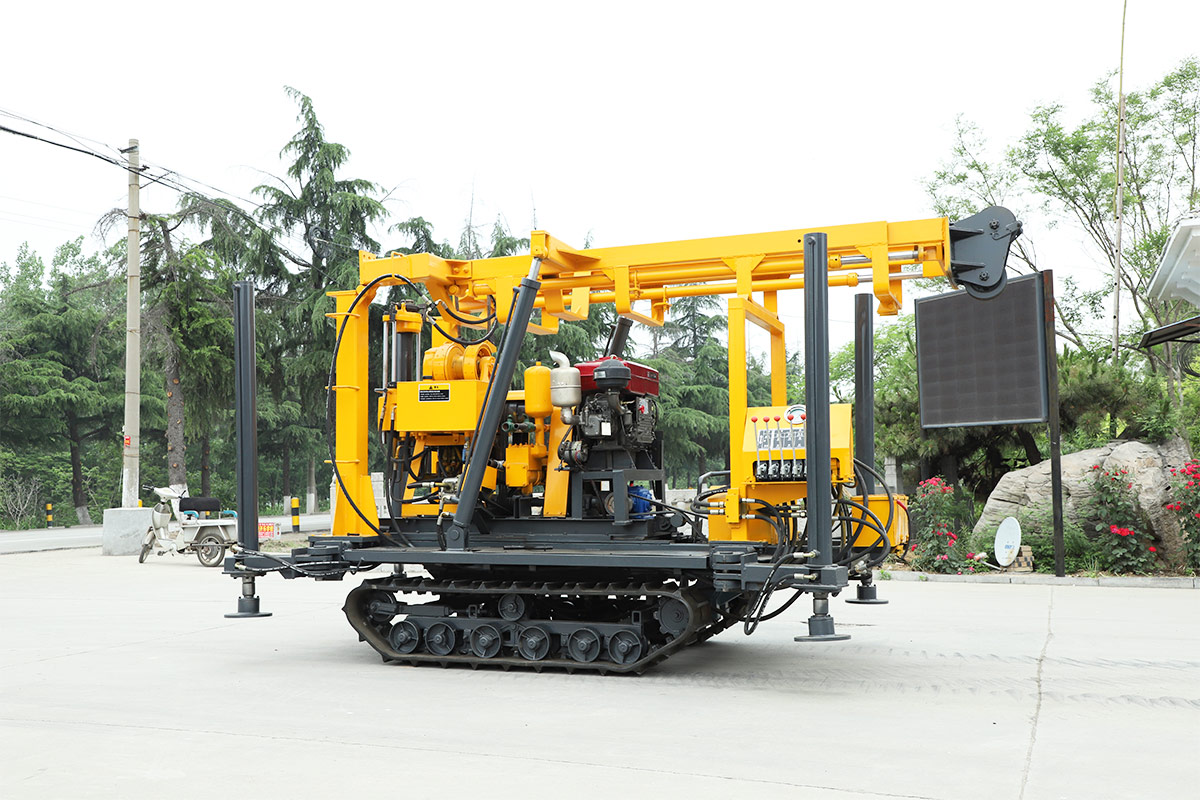

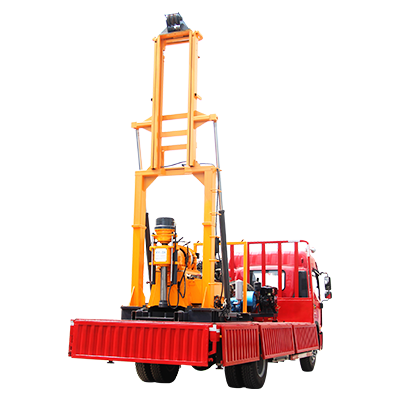

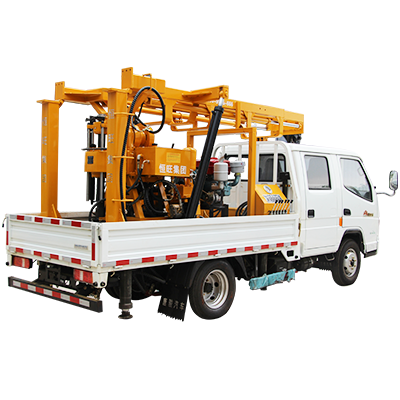

2. The rig can be crawler or truck type and can be personalized to various customer requirements.
3. Occupying a small footprint, this compact yet powerful multipurpose drilling rig allows the user to carry out a wide range of drilling techniques to medium depths in areas of difficult terrain and limited space.
Hengwang water well drilling rigs are designed to be durable and highly reliable to provide safe and efficient work in some of the most challenging environments in the world.
The rig is versatile and can be used in a variety of applications: water wells, mineral exploration, geothermal applications, soil surveys, rock coring, and more. The rig can be mounted on tracks, skids or trucks.
