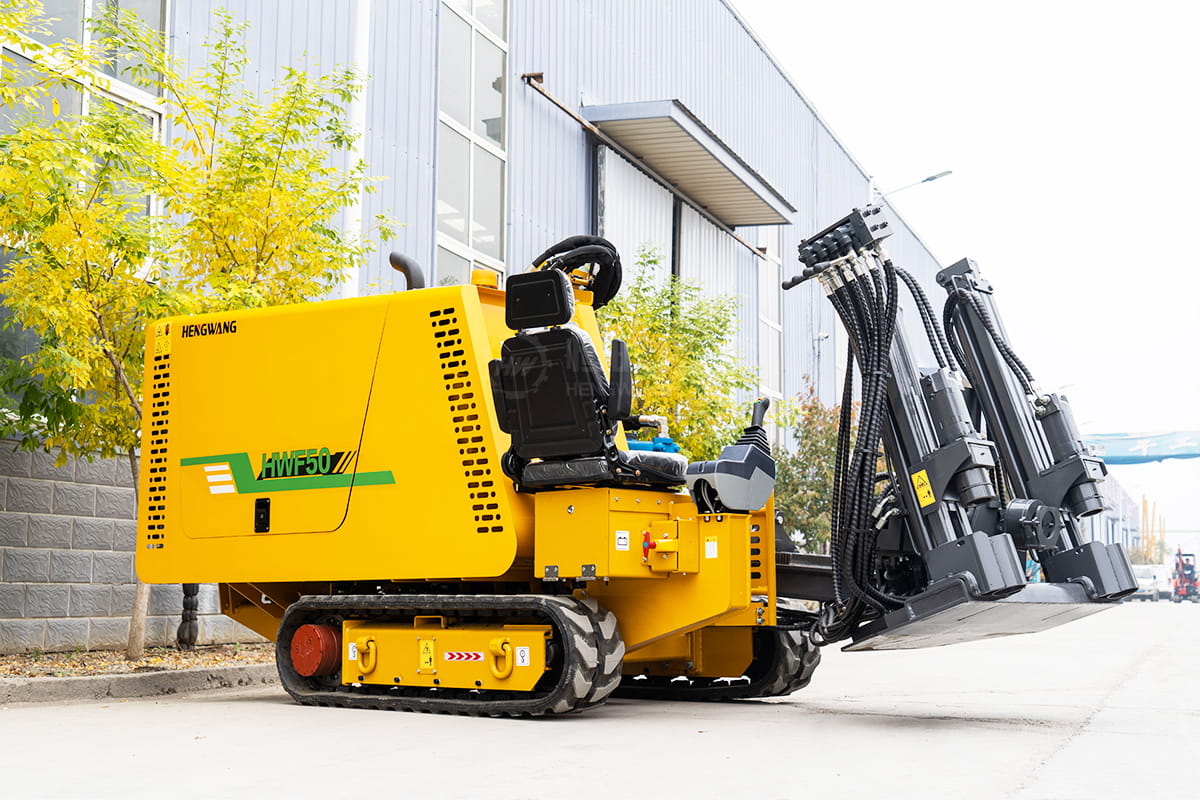

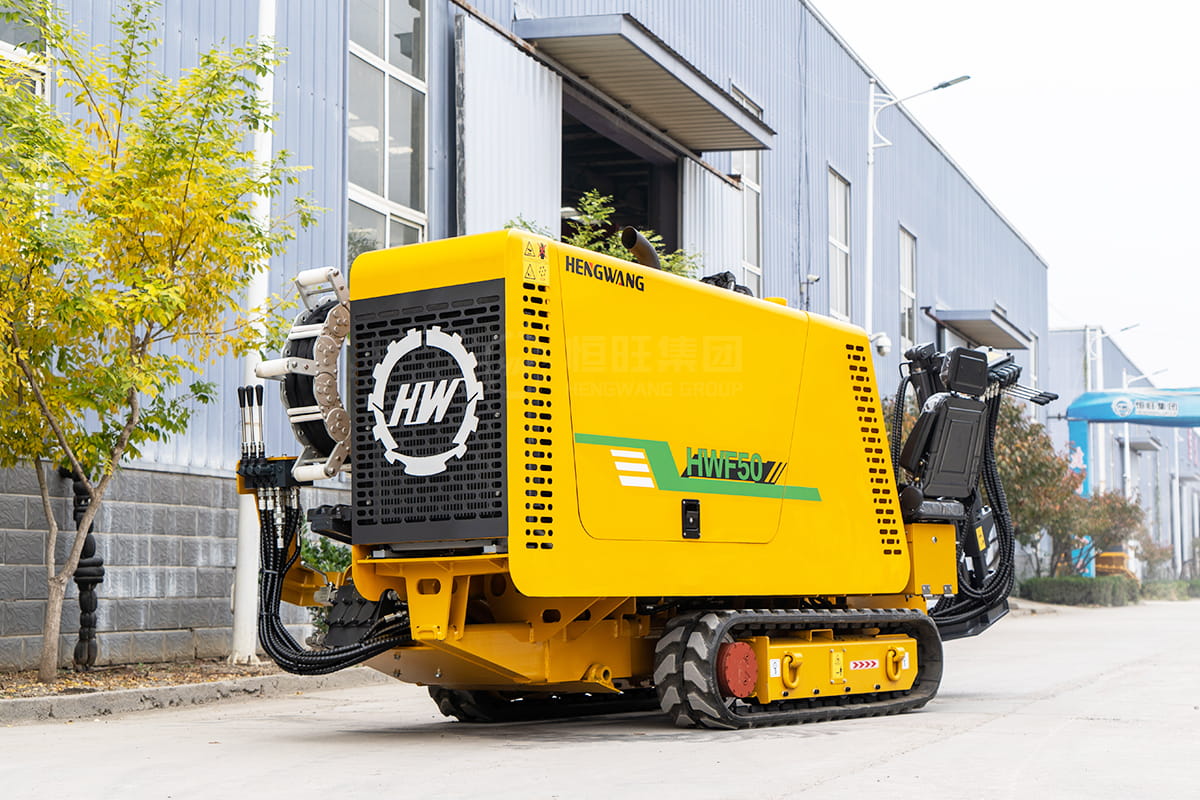

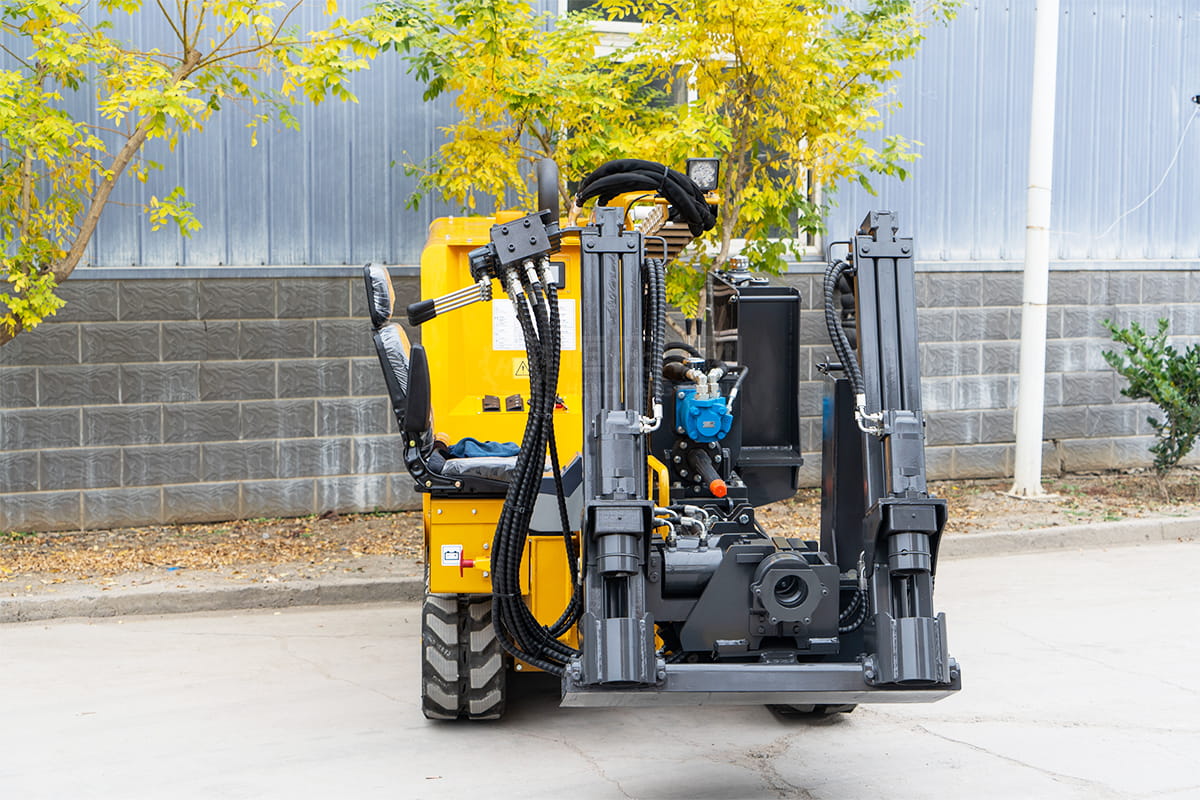

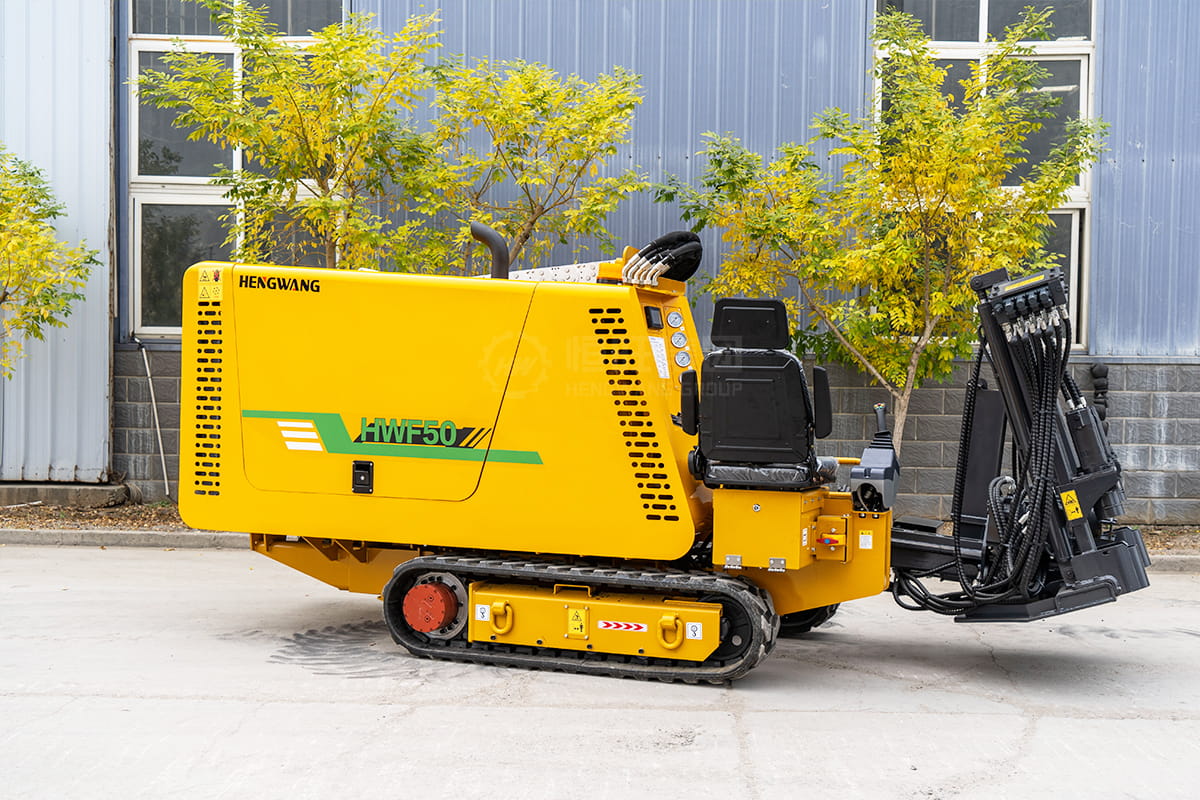

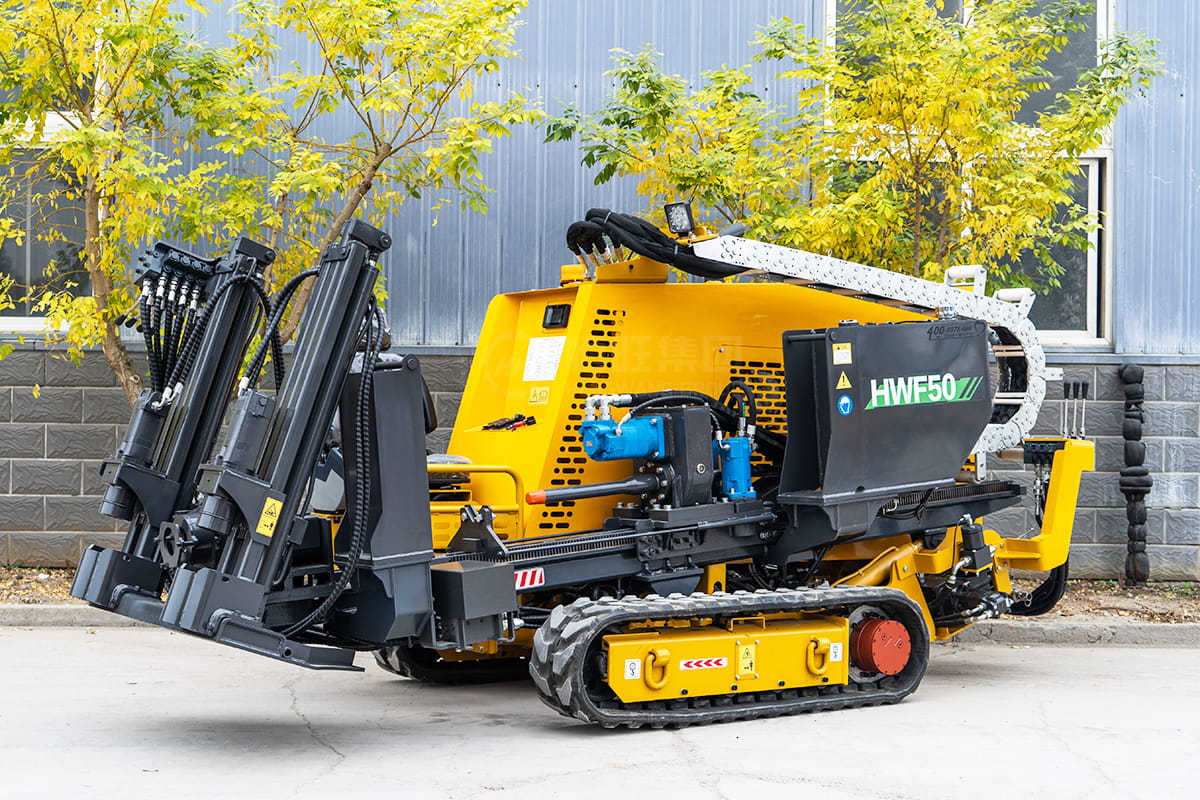

HWF50 horizontal directional drill rig

rated power：46.2/2200 KW/R/MIN
maximum torque:2235N-M
maximum pressure：20MPA
Request a Quote contact@hengwang.cn 8613563755530
Product Introduce

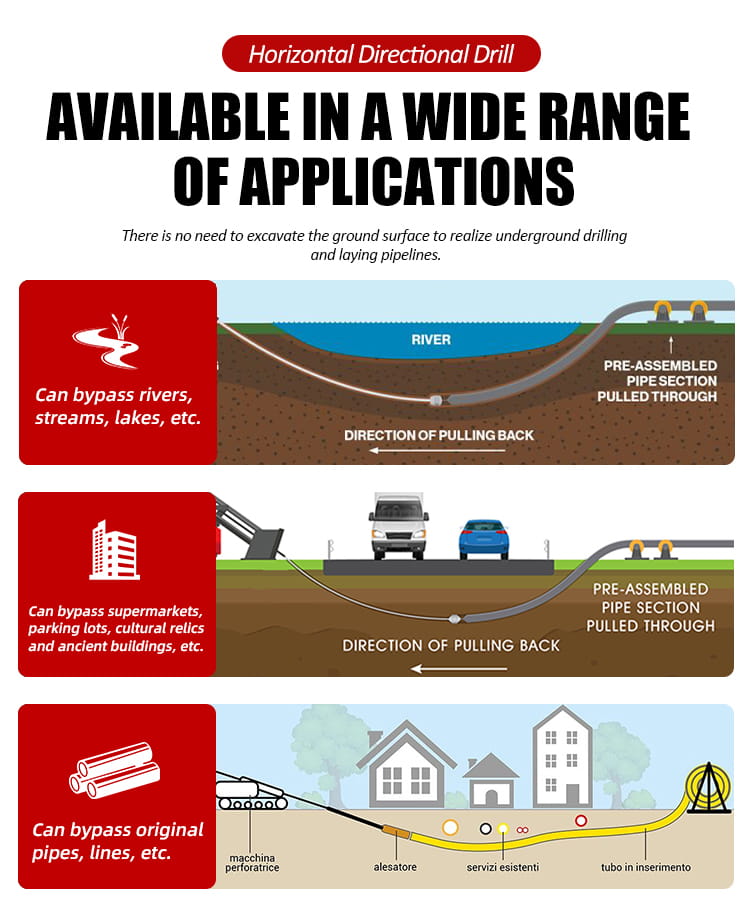

Horizontal directional drilling (HDD) rigs are specialized equipment used for trenchless installation of underground utilities, such as pipelines and cables. These rigs offer several advantages and have distinct characteristics:












HW50F Horizontal Directional Drill
Machine ConfigurationOperating Weight3450kg
Engine BrandYanmar
Engine Model4TNV98C-CSCTY
Engine Power46.2KW
Fuel Tank Capacity72L
Main Pump Displacement76ml/r
Hydraulic Oil Tank Capacity120L
Working Pressure20Mpa
Dimensions3880*1330*1800mm
Hydraulic Anchoring DeviceStandard configuration

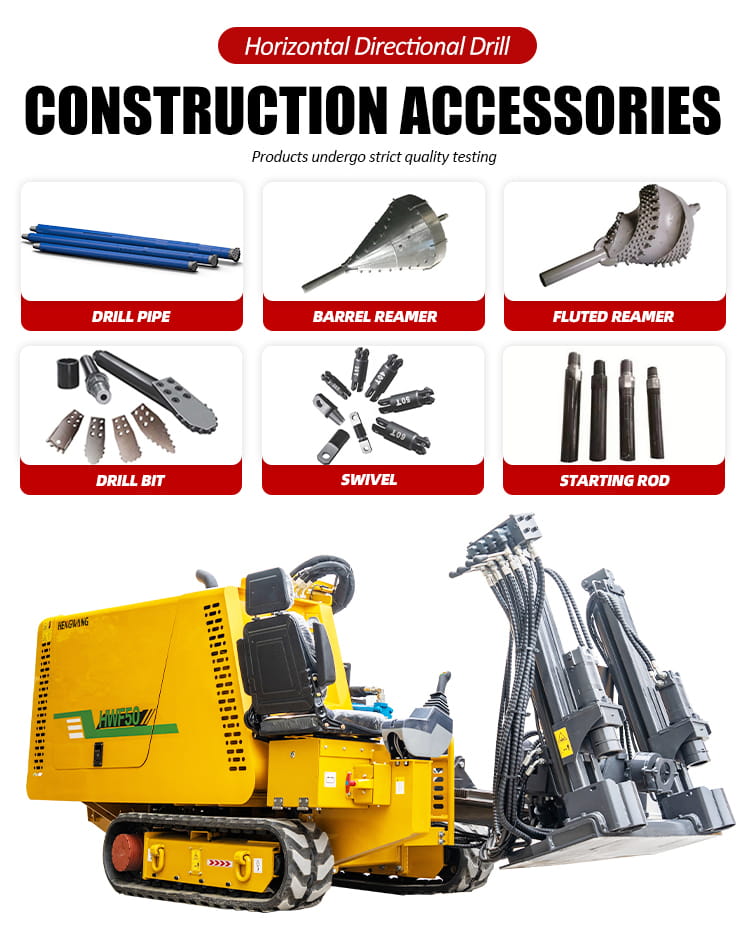

Drill Rod BoxHolds 44 rods (φ42mm drill rods)
Technical SpecificationPower Head Push/PullDrive TypeSingle motor drive
Maximum Pullback/Feed Force50/50KN
Maximum Running Speed of Power Head61m/min
Power Head RotationTypeSingle motor drive
Maximum Rotation Speed215r/min
Maximum Torque of Power Head2235N·m
Drill Rod SpecificationStandard configurationφ42*1828mm
Entry Angle16-20°
Crawling DriveCrawling Drive Type:Rubber track
Crawling Speed

2.5km/

h

Mud PumpMaximum Flow Rate75L/min
Maximum Pressure60Bar
Rotation Diameterφ150-400min
Maximum Working Distance100m

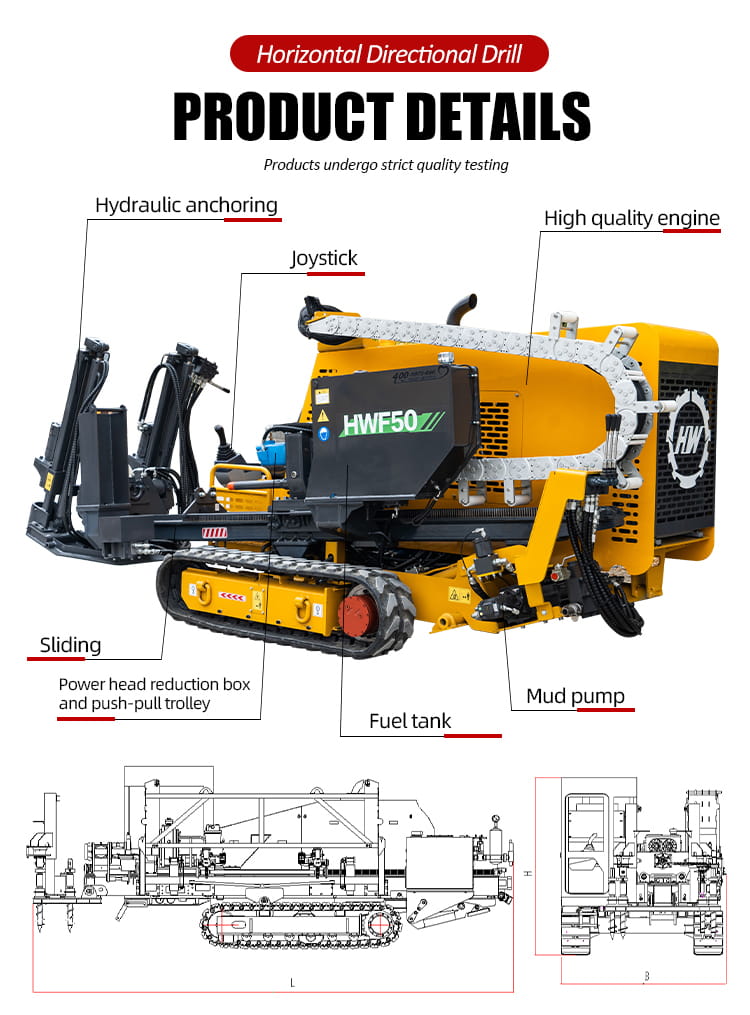

Main Features:

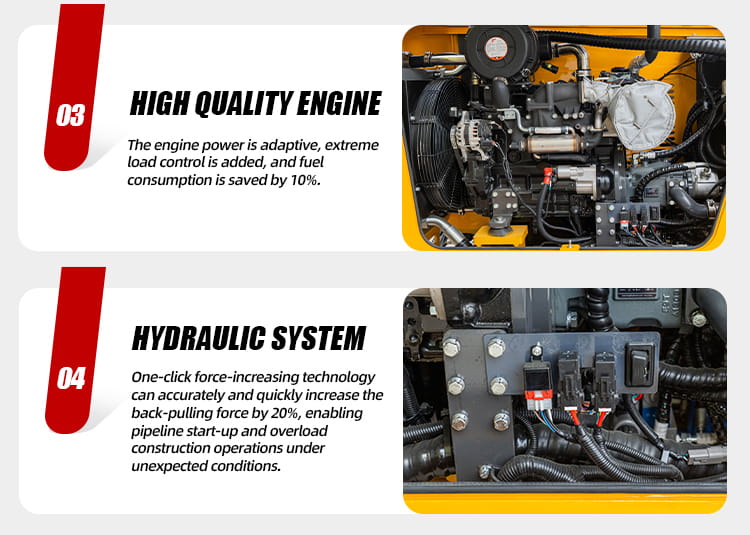

  1. Yanmar Stage IV Engine: Powerful and reliable performance.

  2. Rubber Track Crawler: Suitable for various ground conditions, reducing surface damage.

  3. Compact Design: Ideal for projects with limited working area or short-distance construction, solving the difficulty of working in narrow spaces.

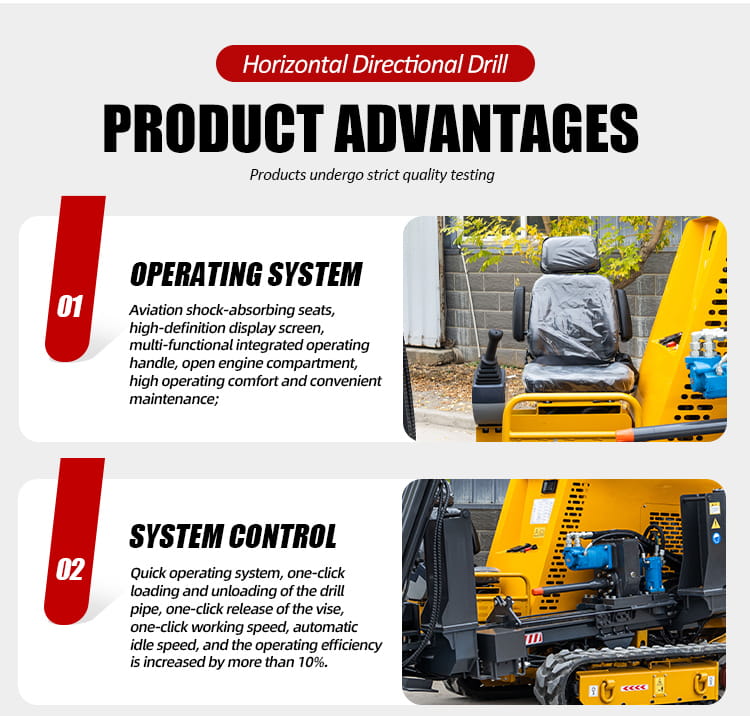

  4. Equipped with Drill Rod Box: Easy single-person operation with high efficiency.

  5. Automatic Hydraulic Anchoring System: Standard configuration for improved stability.


After-sale Service

  • Comprehensive Quality Guarantee:

    We offer a 1-year warranty post-installation or 18 months after shipment (whichever comes first), ensuring reliable performance and your peace of mind.

  • 24/7 Customer Support:

    Our dedicated team provides 24/7 support, guaranteeing to resolve all technical issues within 24 hours for minimal downtime and smooth operations.

  • Regular Follow-Up and Maintenance Advice:

    We perform regular check-ins via phone or remote monitoring to proactively maintain your machinery, ensuring long-term safety, efficiency, and reliability.

  • End-to-End Logistics Support:

    We handle customs clearance, shipping, insurance, taxes, and documentation — so you can focus on business while we manage logistics smoothly.
