Parameter:
| Model | HW452H |
| Power (KW) | 1691 |
| Drilling diameter (mm) | φ90-130 |
| Maximum torque (Nm) | 1900/1540 |
| Rotation speed (rpm) | 0-92/0-115 |
| Working Pressure(bar) | 18 |
| Total weight (kg) | 10000 |
Remark:
This product is continuously improved as technology advances. The difference between the parameters and the actual product is subject to the actual product.
The DTH drilling rig is specifically designed for drilling blast holes in medium to hard rock, with a diameter range of 90-130 mm and a maximum depth of 24 m.
Main feature:
1. Equipped with an automatic rod changing mechanism, enabling efficient rod changes and reducing manual labor intensity while improving safety.

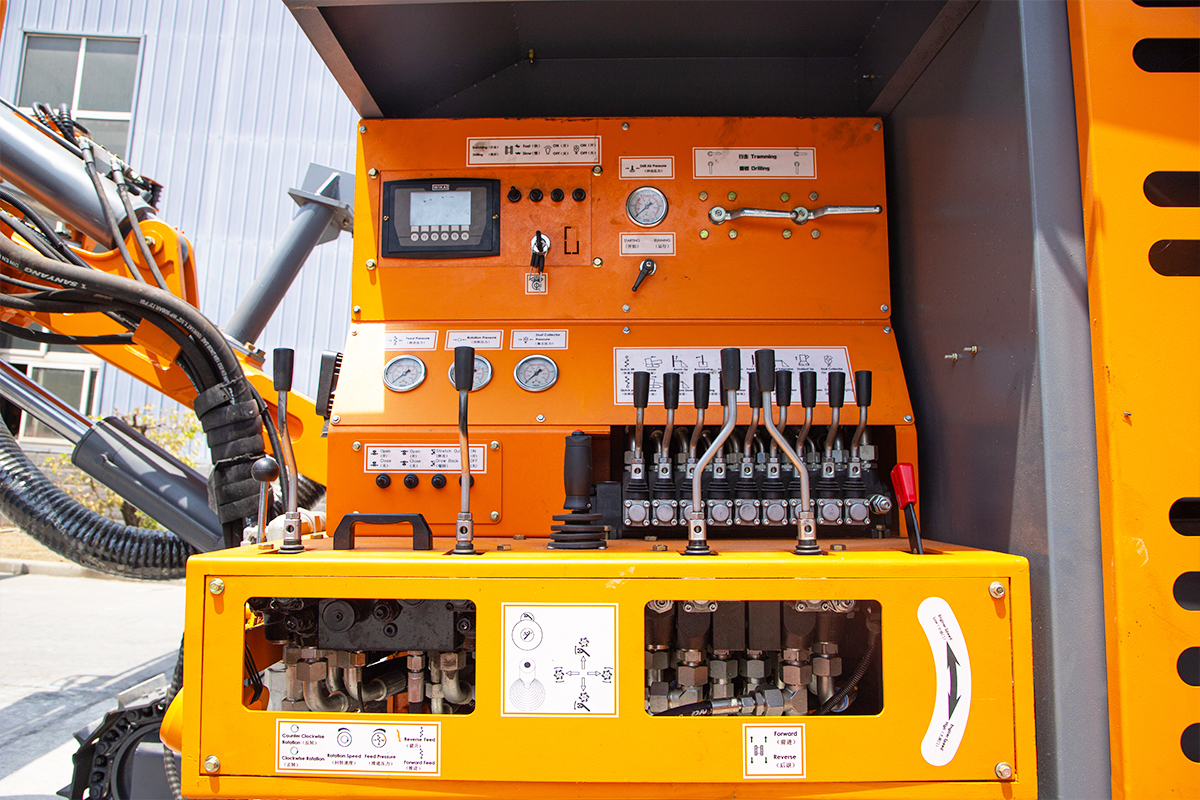

2. Utilizes a new electronic control system with a centralized power distribution cabinet, facilitating convenient fault detection and troubleshooting.
3. The overall machine layout is well-designed, providing ample space for equipment maintenance and servicing.
4. Features a two-stage compressor head, delivering high efficiency and energy savings during operation.
