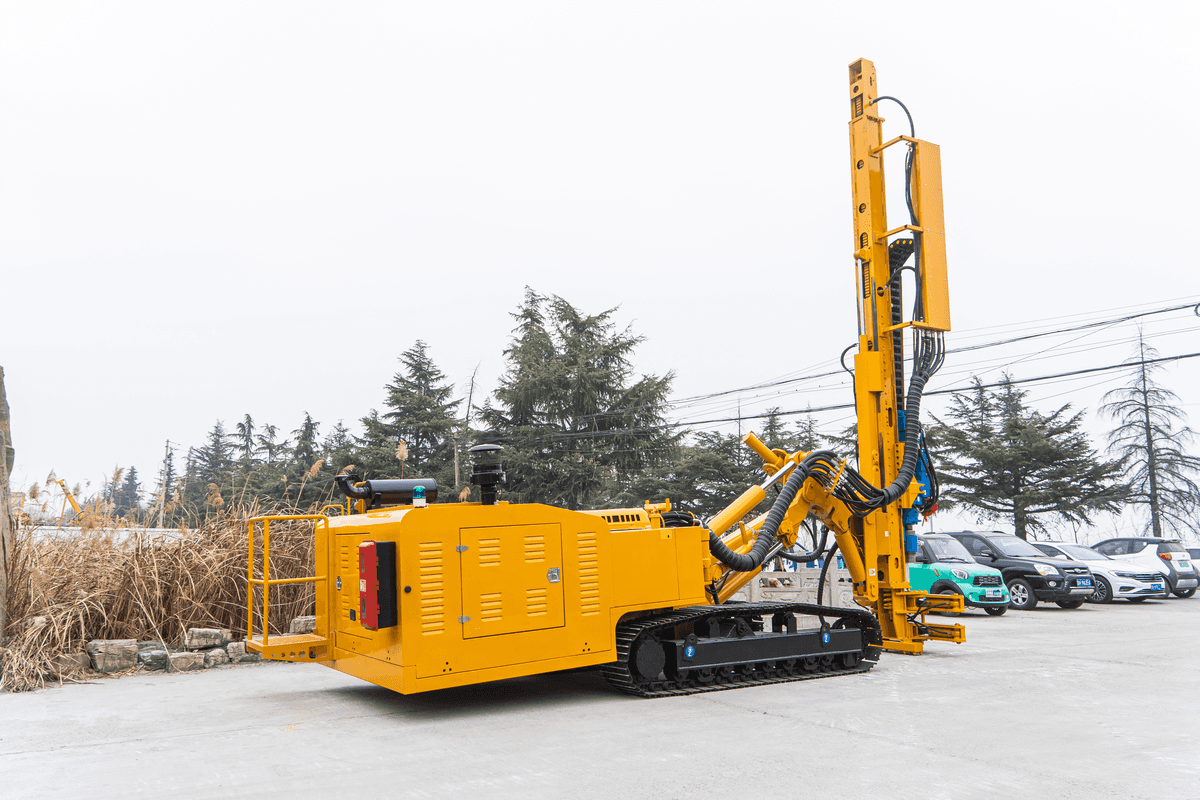

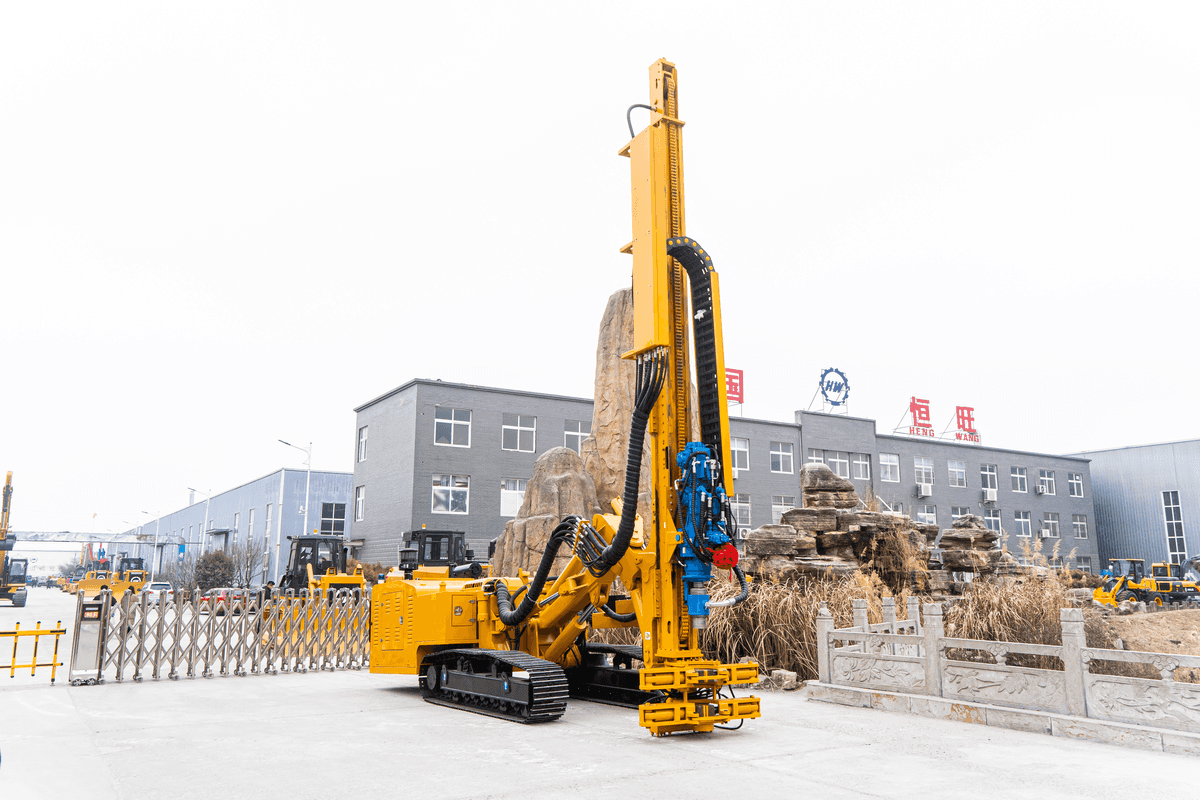

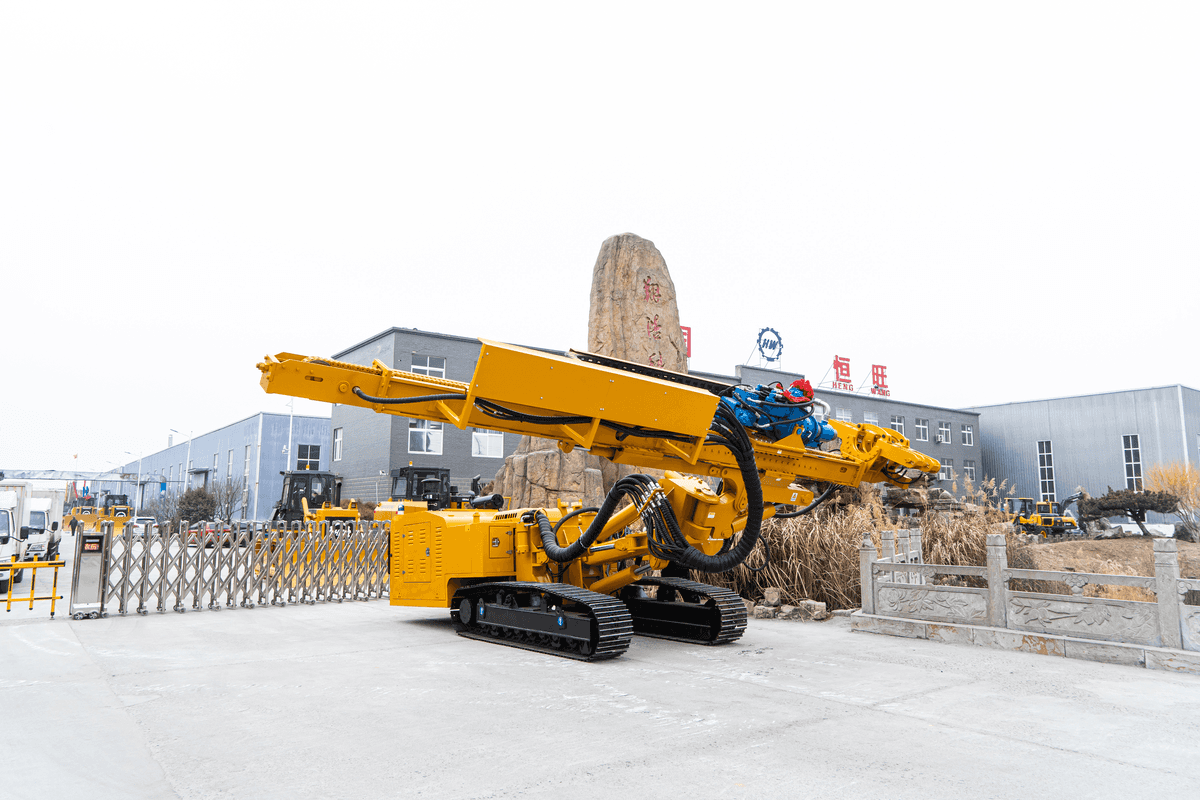

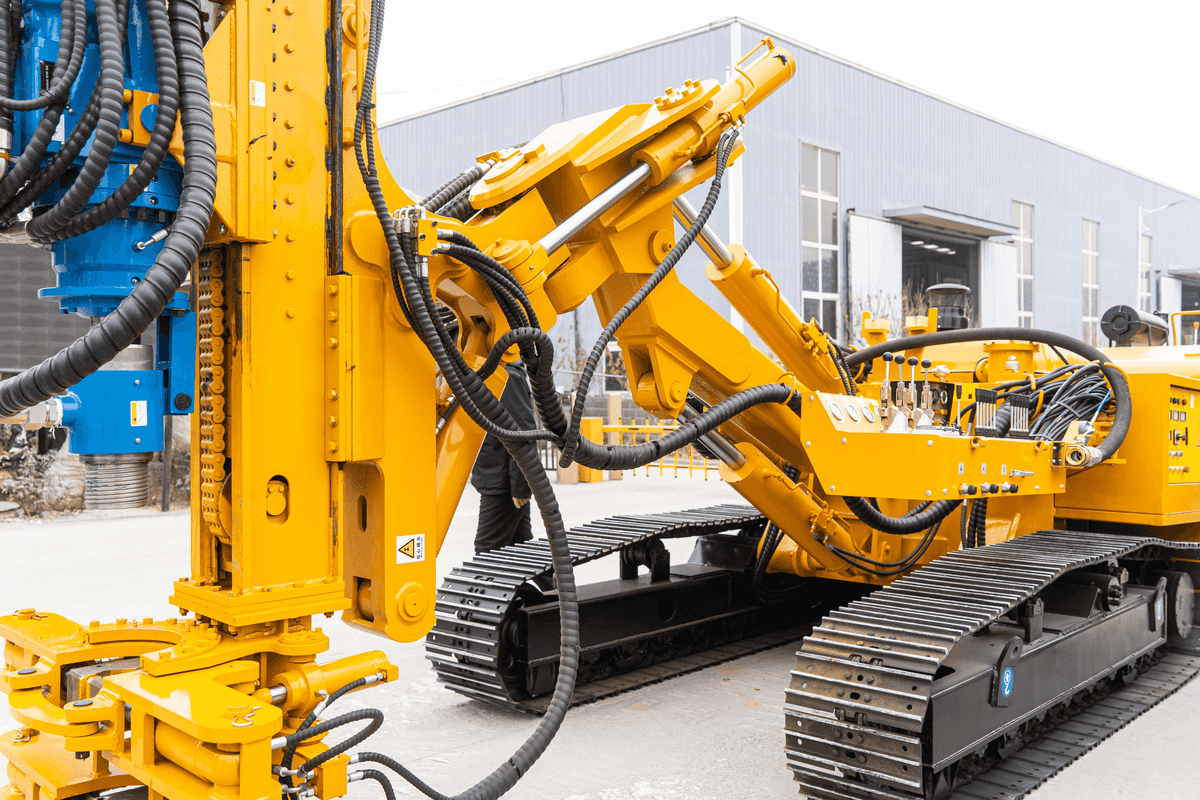

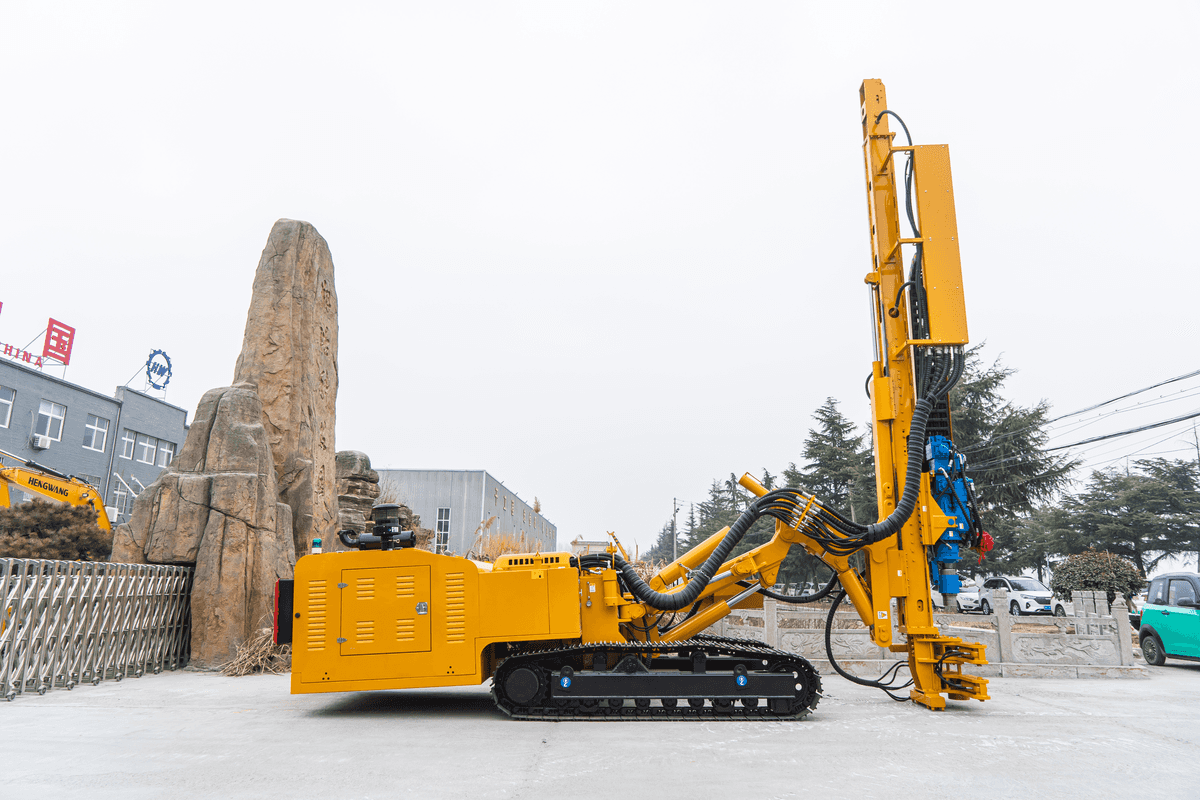

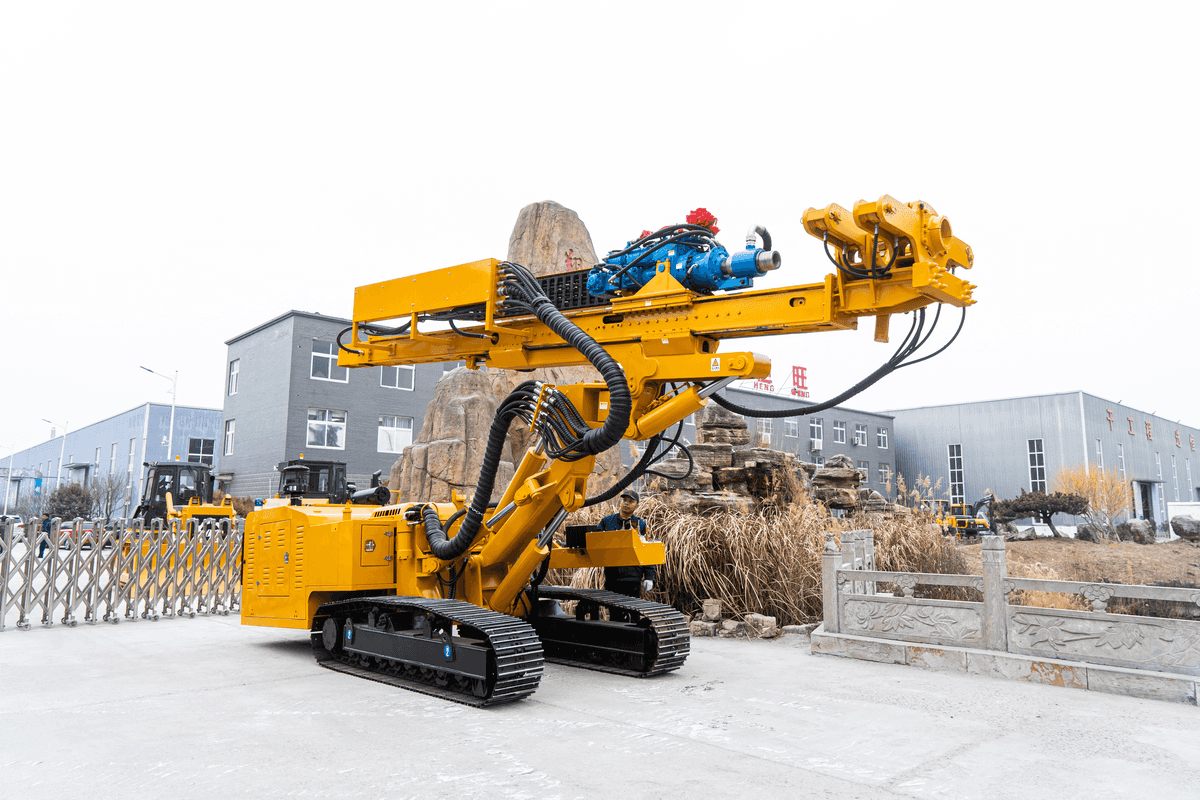

HW-M360 High-Torque Multi-purpose Hydraulic Anchor Drill Rig (Custom Edition)

Parallel Height：3500-3800mm
Drilling Diameter：250-280mm
Drilling Depth：80-120m
Request a Quote contact@hengwang.cn 8613563755530
Product Introduce

Technical ParametersHW-M220HW-M260HW-M360 (Customized)
Engine TypeY2-280S-4 (Cummins Optional)7H-220 (Cummins Optional)Cummins 162KW
Max. Drilling Depth80m100m120m
Max. Drilling Diameter250mm250mm280mm
Max. Parallel Height3500mm3500mm3800mm
Rated Power90KW162KW90+11 KW
Engine Auxiliary Power30KWShangchai Power162KW
Hydraulic System Pressure280bar280bar280bar
Power HeadHB500cHB500BHB520
Max. Torque7500-15000 N·m7500-15000 N·m7500-16000 N·m
Max. Rotation Speed84-118 rpm84-128 rpm84-135 rpm
Impact Force750 N·m800 N·m800-900 N·m
Percussion Frequency1800-2400 bpm1800-2400 bpm1800-2400 bpm
Feeding Stroke4.0 m4.0 m4.8 m
Ground Pressure4.7 N/cm²4.7 N/cm²4.9 N/cm²
Towing Force130 KN130 KN140 KN
Total Weight10 ton11 ton14 ton
Transportation Size6800x2200x2600mm6800x2200x2600mm7800x2260x2700mm




After-sale Service

  • Comprehensive Quality Guarantee:

    We offer a 1-year warranty post-installation or 18 months after shipment (whichever comes first), ensuring reliable performance and your peace of mind.

  • 24/7 Customer Support:

    Our dedicated team provides 24/7 support, guaranteeing to resolve all technical issues within 24 hours for minimal downtime and smooth operations.

  • Regular Follow-Up and Maintenance Advice:

    We perform regular check-ins via phone or remote monitoring to proactively maintain your machinery, ensuring long-term safety, efficiency, and reliability.

  • End-to-End Logistics Support:

    We handle customs clearance, shipping, insurance, taxes, and documentation — so you can focus on business while we manage logistics smoothly.
