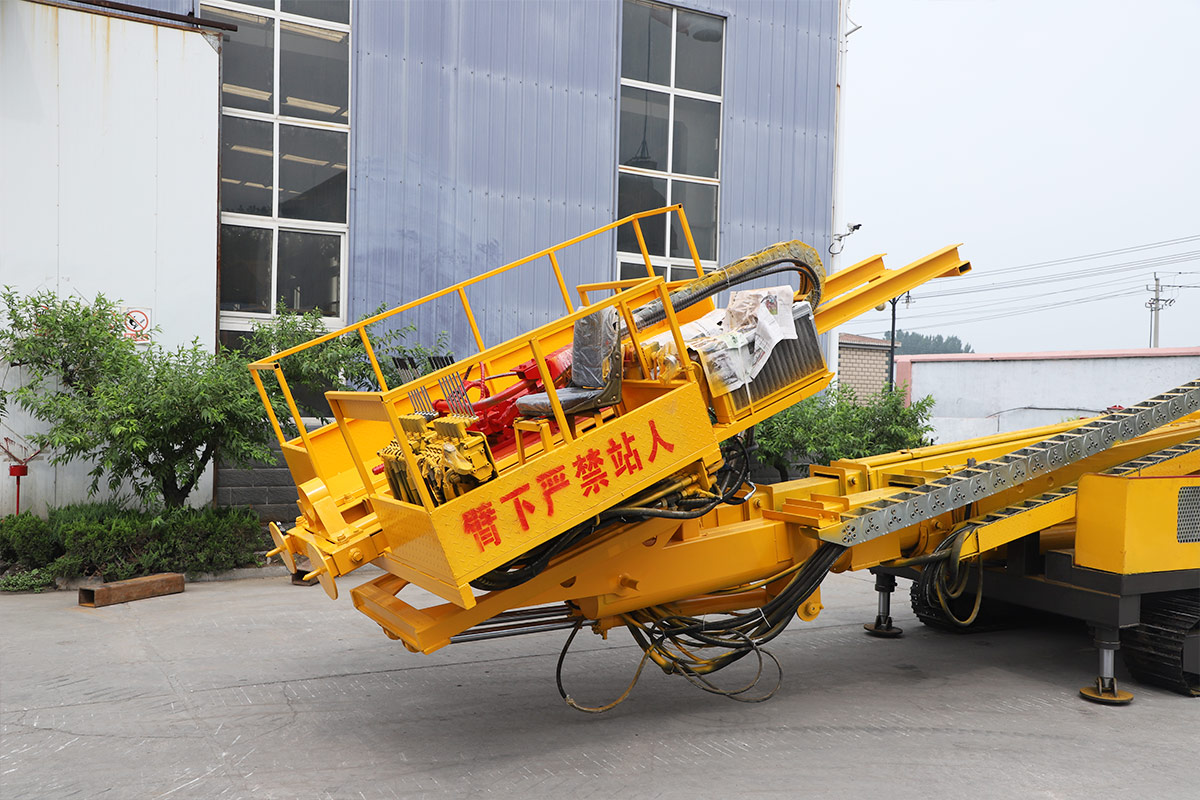

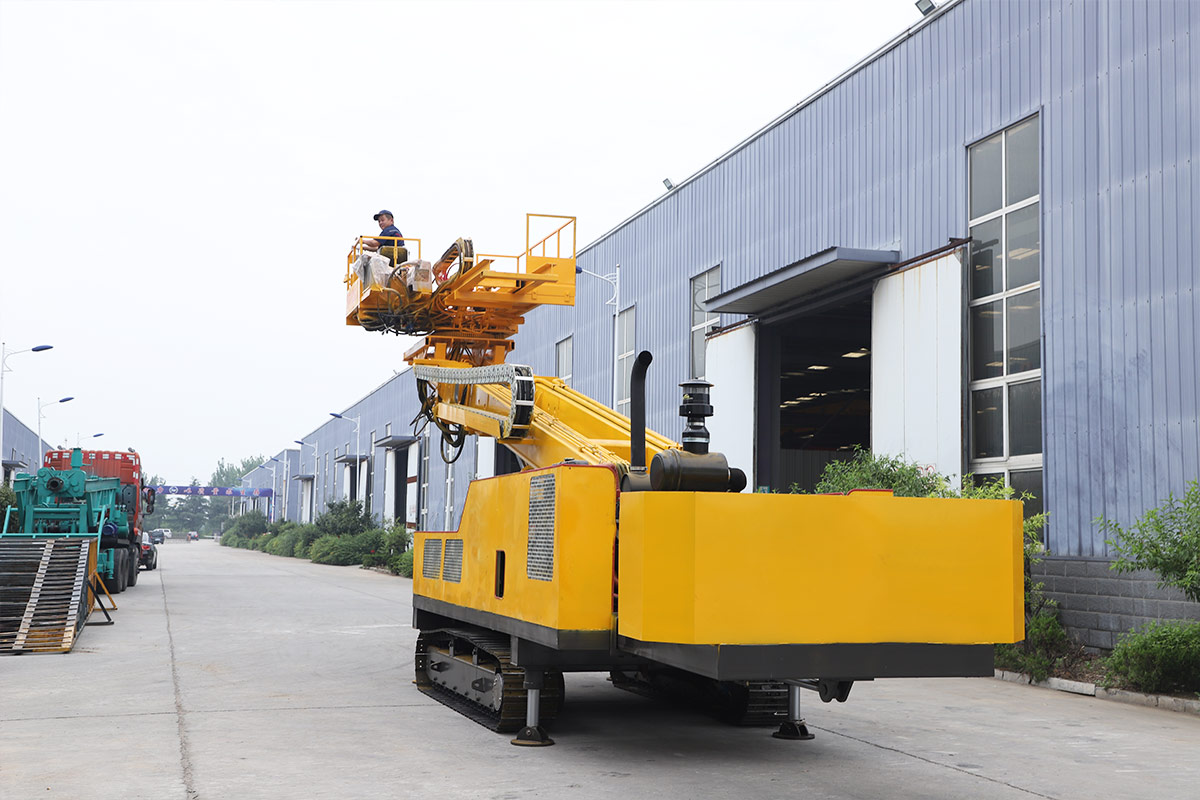

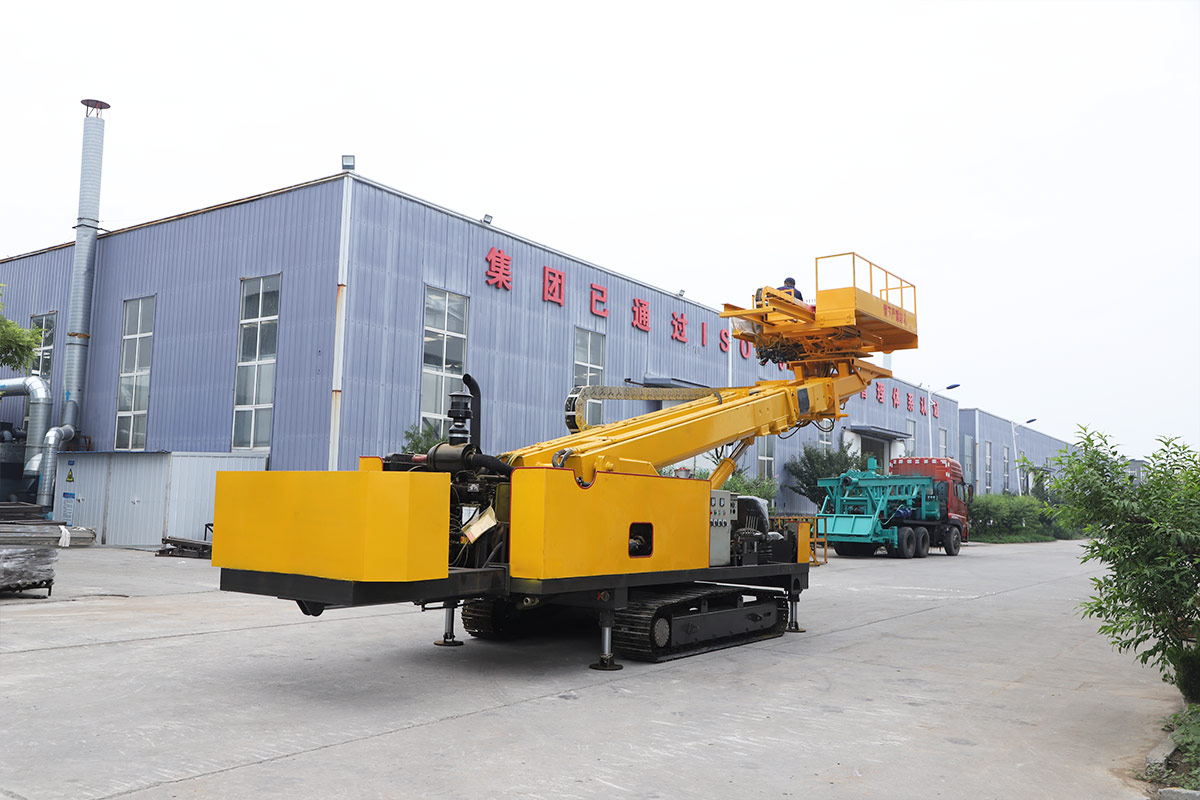

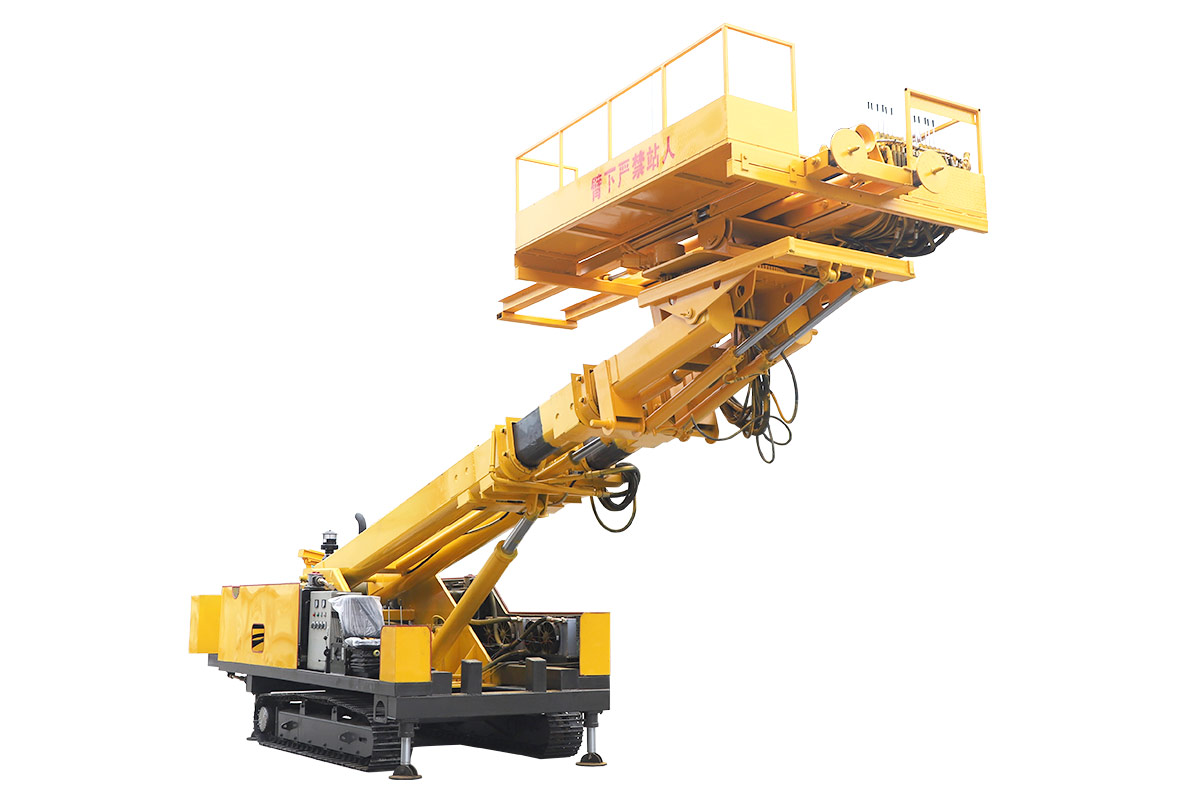

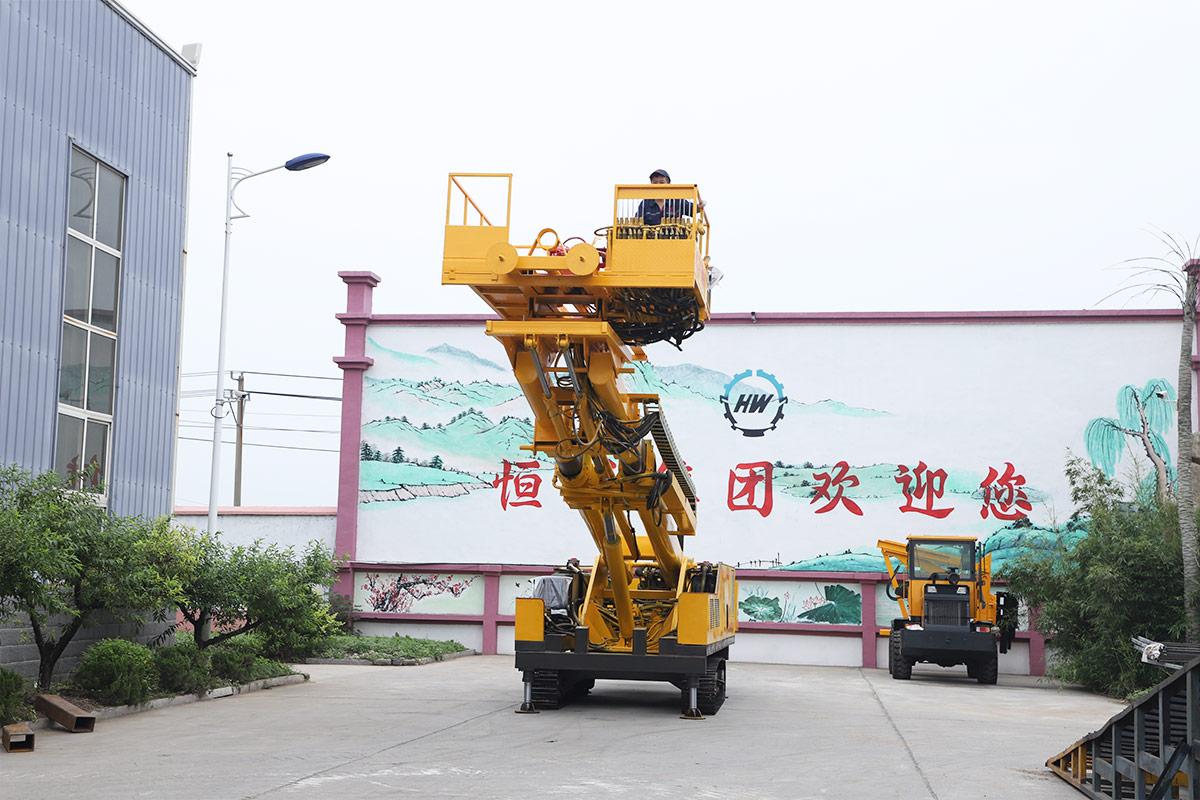

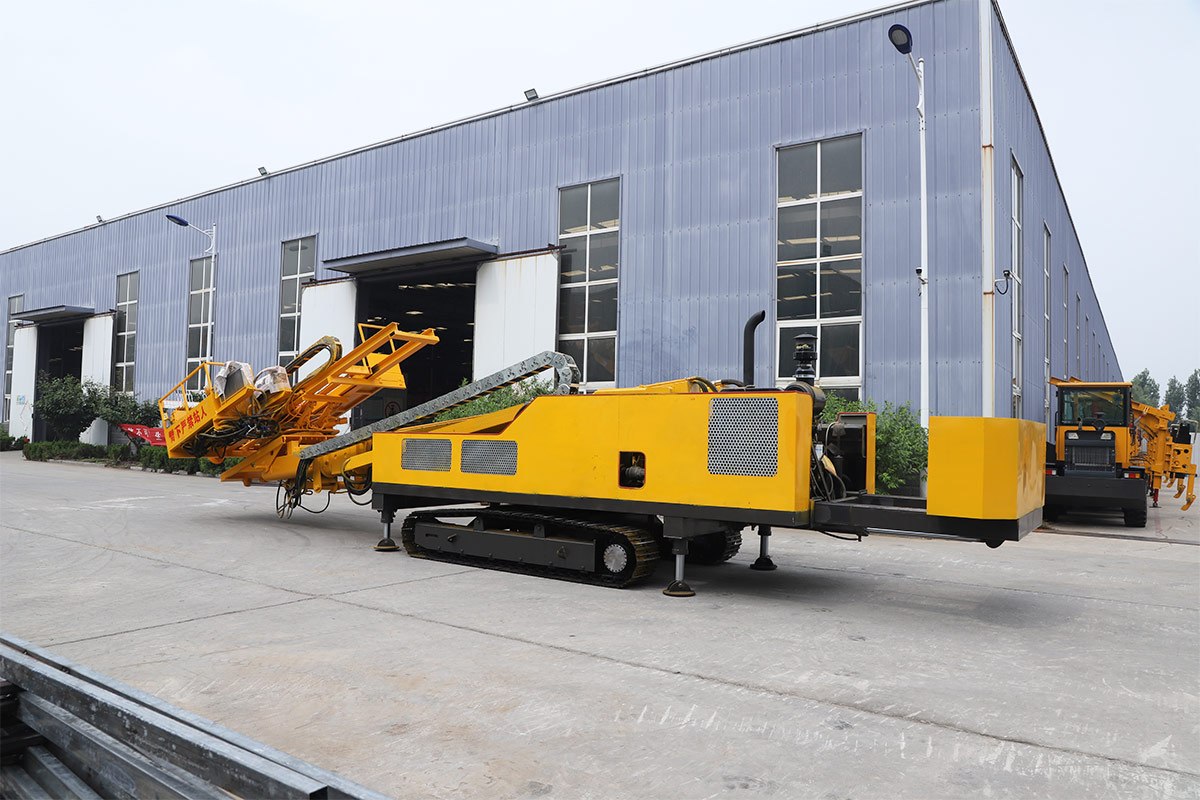

Crawler anchor drilling rig is a new type of highly efficient and fast mechanized hydraulic operation drilling equipment independently developed and manufactured by our company. The drilling rig adopts full hydraulic control mode, crawler-type walking device, which has the characteristics of high efficiency, specialty, and fast hole expansion speed.
Main technical parameters | |
Height (m) | 12 |
Track (mm) | 3200*2300 |
Track shoe width (mm) | 400 |
Turn down (°) | 360° |
Big arm | Double big arms three sections |
Motor power (kw) | 45 |

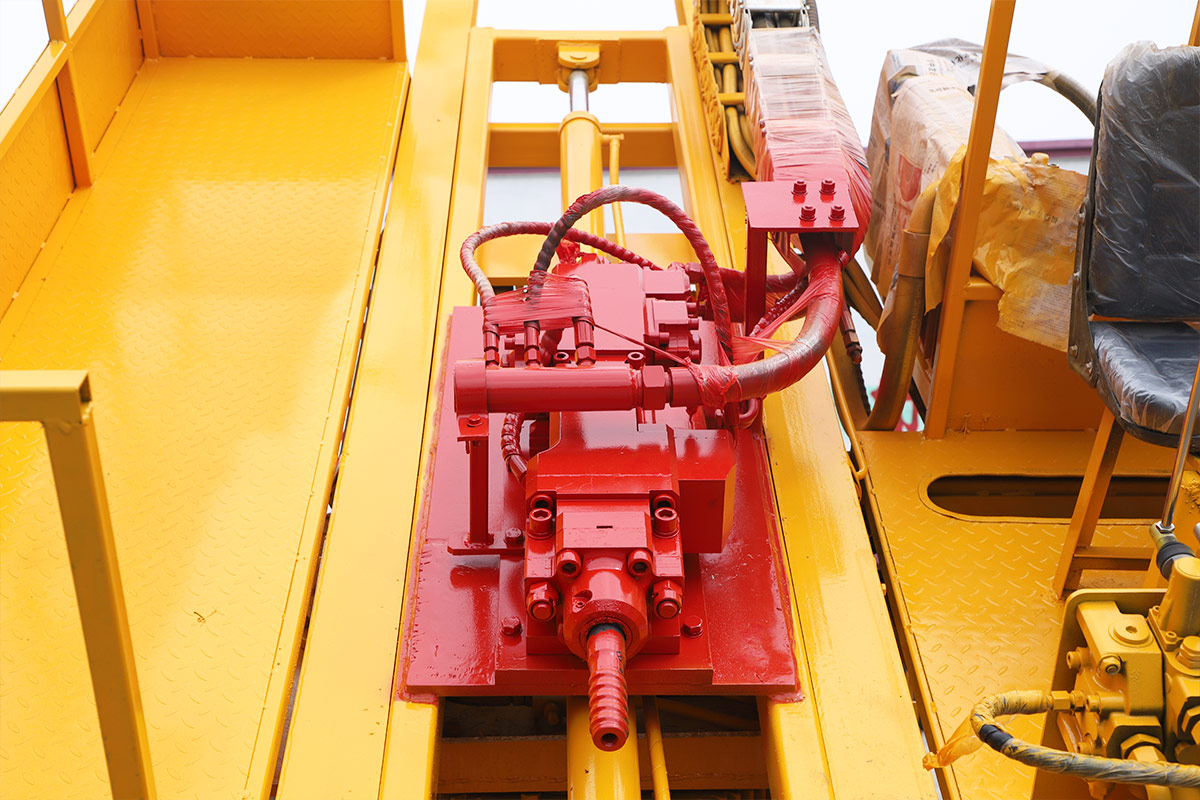

Power head model | Double hydraulic power head |
Reducer torque (N m) | 4500-7000 |
Features:
1. The drilling rig is designed on the principles of reliability, practicality and portability.
2. The performance of the whole machine is stable, reliable and has a long service life.
3. On the basis of satisfying the drilling capacity, most of the components of this model are made of alloy steel to reduce the weight as much as possible.
4. Its structure is split, with good detachability, quick and convenient relocation and installation, and porous construction can be completed in one relocation.
5. The operator can stay away from the orifice, the working environment is good, and the labor intensity is low.
6. It is suitable for multi-process construction such as pneumatic down-the-hole hammer drilling, casing and pipe drilling, and long helical drill pipe drilling;
7. Construction of hydropower station projects, prestressed anchor holes and drainage holes on slopes of railways and highways, as well as landslide prevention and rock collapse disaster control projects.
