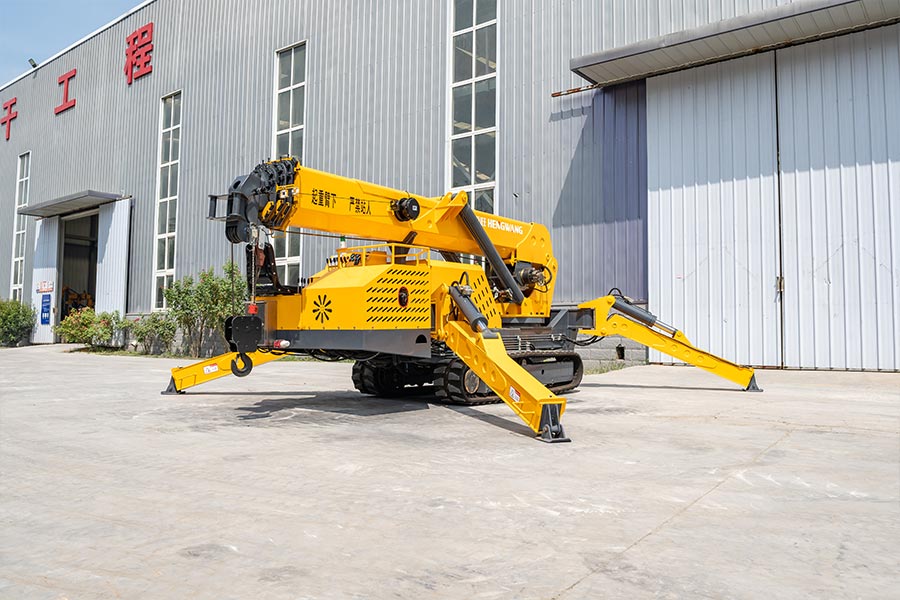

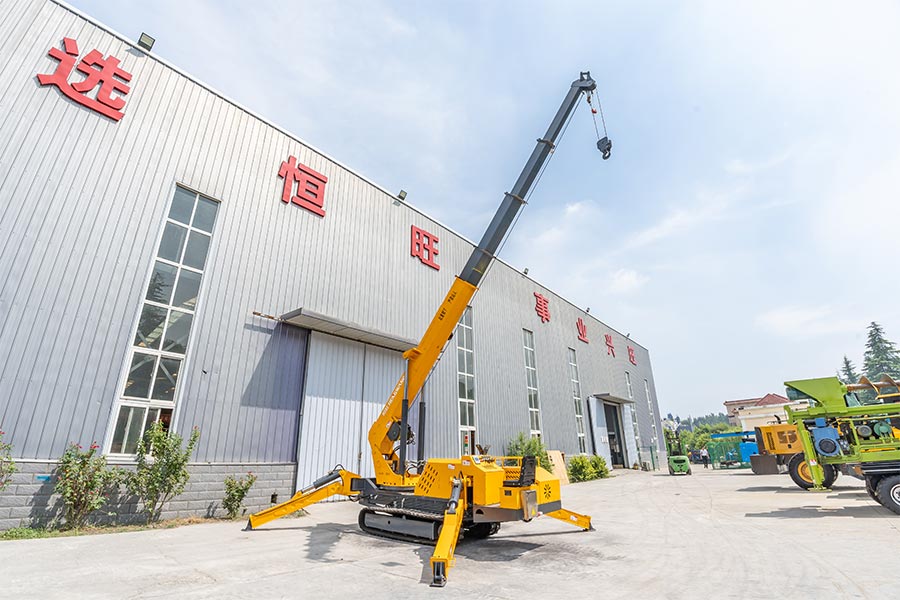

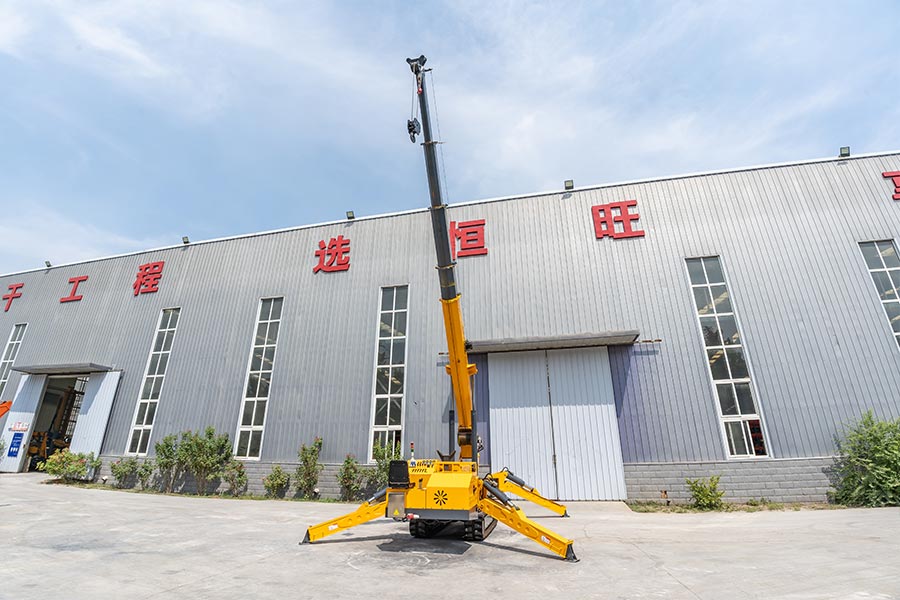

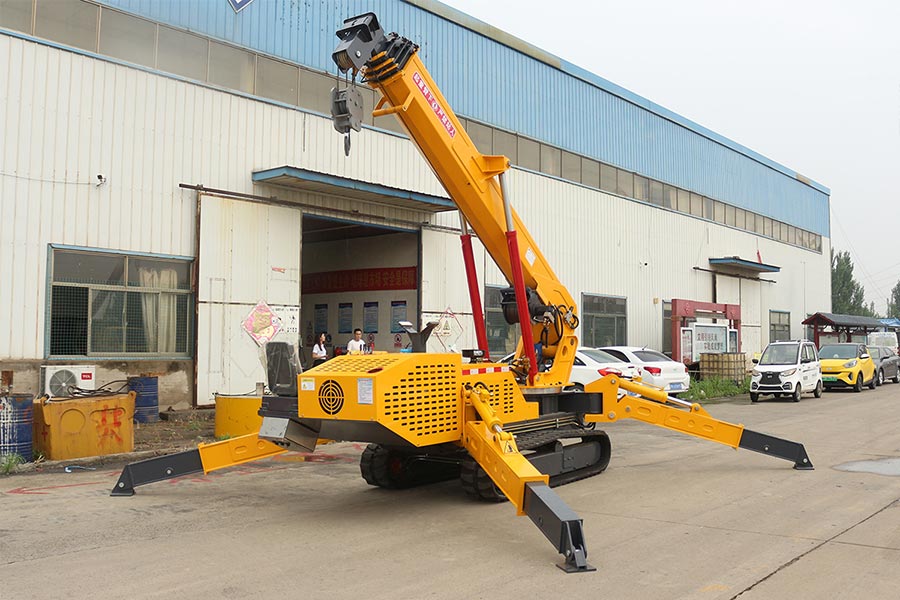

Hengwang brand miniature cranes are specially designed and manufactured for working in indoor or outdoor low-passage confined areas.
It was mounted on a double-track chassis with "spider-type" outriggers.
Hengwang miniature cranes are compact and easy to move, and are used in places where traditional lifting equipment or truck-mounted cranes cannot be used due to their size.
| Model | HW500 |
| Specification | 5.0t |
| Dimension | L5000mm*W1500mm*H2200mm |
| Machine weight | 6800kg |
| Max working radius | 14m（0.5ton） |
| Max lifting height | 16.8m |
| Standard configuration | Proportional Valve and Proportional Remote control , Diesel engine, Electric motor, Power distribution box, Searcher hook, Storage battery, Black rubber track, EMO switch, Three color lamp, Remote control lamp, Luffing balance valve, Telescopic balance valve, Hook anti-decoupling device, Slewing brake, Winch brake, Outrigger off the ground alarm and automatic stop device, Walking/Outrigger/Boom three-mode interlock system, Extra two sets of filters |
