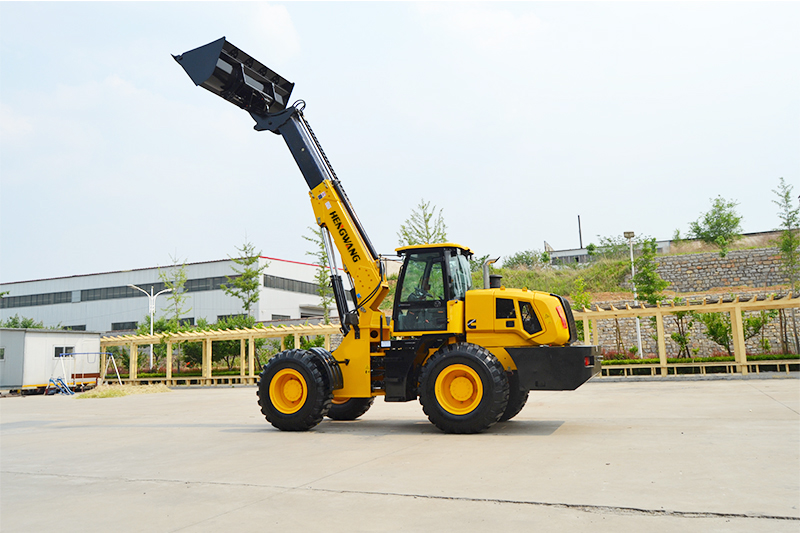

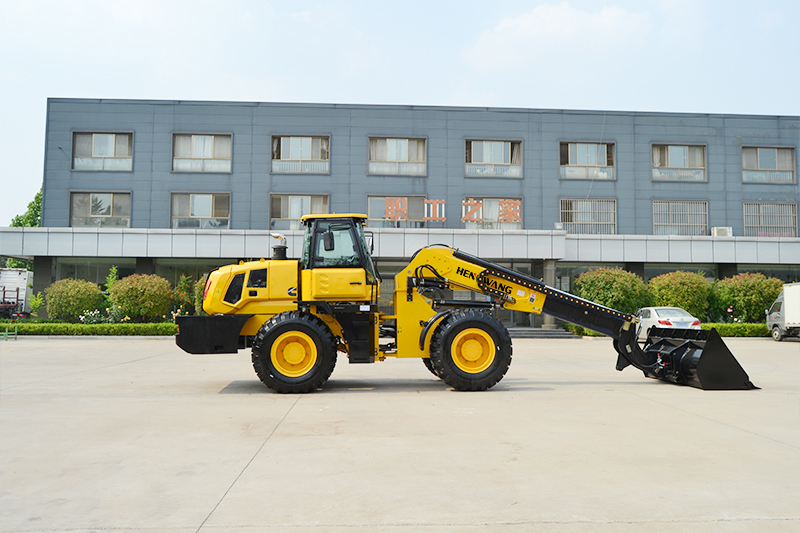

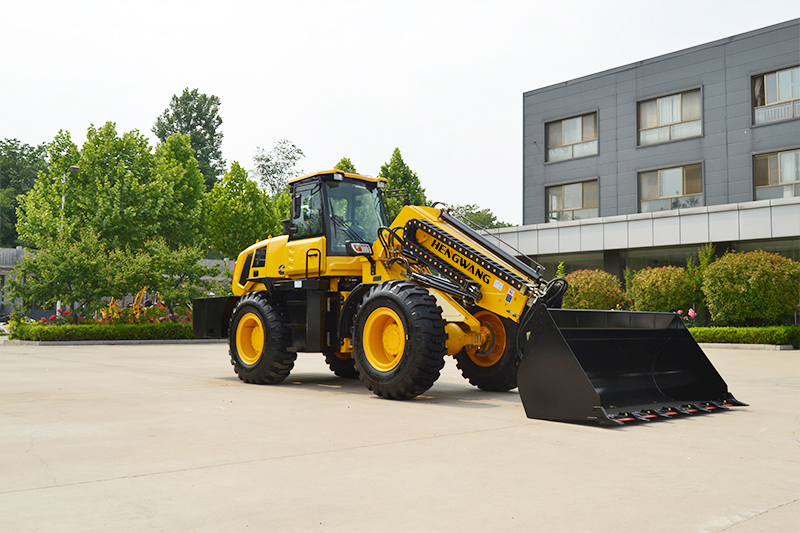

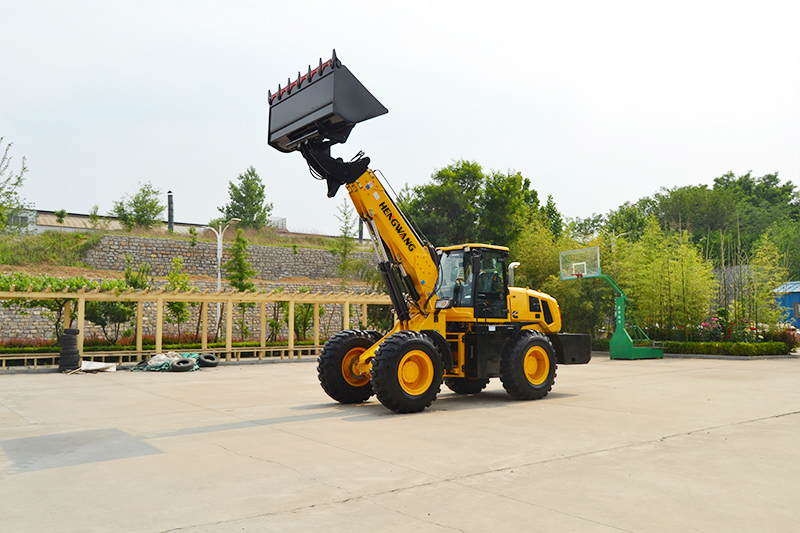

HW3500 Telescopic Loader

Rated Load: 3500Kg
Bucket Capacity: 1.7m³
Rated Power: 92Kw
Product Introduce
1. Remarkable Working Range:

   - The telescopic boom, with a reach of 6 meters, significantly expands its working scope, enabling you to handle a variety of tasks effortlessly.

2. Powerful and Agile Design:

   - The articulated structure and axle transmission design contribute to its power and superior pass-through ability, making it adept at navigating diverse terrains.

3. Reliability with Overseas Quality:

   - The seals, valves, and joystick handle are sourced from renowned overseas manufacturers, ensuring a reliable and long-lasting machine.

4. Comfortable Operation:

   - An adjustable spring seat and optional air conditioner enhance operator comfort, making extended operation sessions more pleasant.

5. Convenient and Safe Operation:

   - The wide-view cabin and dual entrances provide convenience and safety during operation, giving operators optimal visibility.

6. Easy and Convenient Operation:

   - The quick coupling system, mechanical joystick, and user-friendly buttons streamline the operation, making it both easy and convenient.

7. Simplified Maintenance:

   - The rear cover can be easily opened as a whole part by hand, simplifying maintenance procedures and minimizing downtime.


HW3500
1.0 Engine
(1) Brand/ModelWEICHAI / WP6G125E22
(2) TypeIn-line arrangement, water-cooled, six cylinder,turbocharged diesel engine
(3) Rated power92KW
(4) Optional modelCUMMINS
2.0 Overall Dimensions
(1) Overall length7500mm
(2) Overall width2280mm
(3) Overall height3200mm
(4) Bucket hinge pin height6000mm
(5) Optional bucket hinge pin height7000mm
3.0 Transmission System
315 Gearbox+hydraulic converter + drive shaft +28 hub reduction axle
4.0 Bucket
(1) Capacity1.7m³
(2) Width2300mm
(3) TypeHeavy-duty bolt on teeth
(4) Max. Load3000kg including bucket or attachment
5.0 Operating Specifications
(1) Steering SystemArticulated hydraulic steering
(2) Driving SystemFour wheel drive
(3)Hydraulic quick releaseYes
(4)Hydraulic pilot joystickYes
(5) Steady riseYes
6.System pressure20Mpa
7. Weight8000KG
