| Model | HW45L | HW60L |
| Operating load (kg) | 700 | 850 |
| Max Speed (km/h) | 12 | 12 |
| Rated flux (L/min) | 62.5 | 75 |
| Tire (track) model | 10-16.5 | 12-16.5 |
| Rated power (Kw) | 37 | 45 |
| Fuel tank capacity (L) | 60 | 60 |
| self weight bucket (kg) | 2600 | 3000 |
| Bucket capacity (m3) | 0.4 | 0.45 |
| Overall operating height (mm) | 3670 | 3690 |
| Height to bucket hinge pin (mm) | 2900 | 2920 |
| height to top of cab (mm) | 2030 | 2050 |
| Height to bottom of level bucket (mm) | 2733 | 2753 |
| Overall length ithout bucket (mm) | 2450 | 2630 |
| overall length with bucket (mm) | 3200 | 3380 |

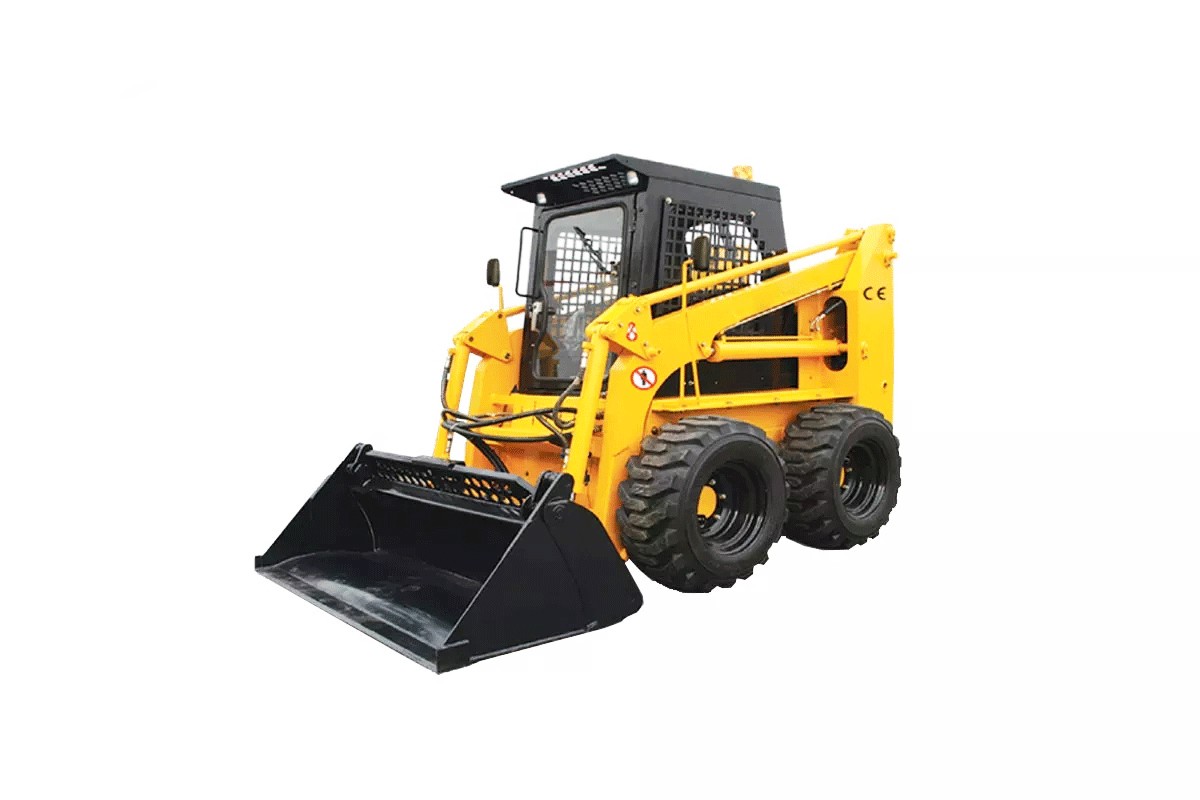

L series Skid Steer Loader:
● The machine features a mechanical leveling system in its body design. It incorporates a tie rod and a rocker arm above the working arm, ensuring the bucket remains balanced during the machine's operation.
● With a focus on lightweight design, the machine weighs less than 3000kg, enhancing its overall efficiency.
Inquire now for the best price.
